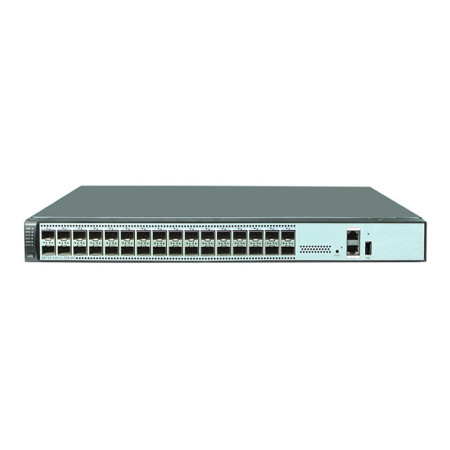

HUAWEI [S6720-32X-SI-32S-AC] Huawai Switch 32 10 Gig SFP+ with 150W AC power supply S6720-32X-SI-32S-AC.. Product #: S6720-32X-SI-32S-AC based on 0 reviews

[S6720-32X-SI-32S-AC] Huawai Switch 32 10 Gig SFP+ with 150W AC power supply

MANUFACTURER: HUAWEI
P/N (รหัสสินค้า): S6720-32X-SI-32S-AC

รับประกัน Huawei Network:

รับประกันสินค้า 5 ปี

ผู้รับเหมาและโครงการต่างๆ ราคาพิเศษ SI ราคา พิเศษ

- +

Fixed port 32x10GE SFP+
Extended slot Not supported
Forwarding performance 240 Mpps
Switching capacity 2.56/23.04Tbps
VLAN features 4K VLANs
Guest VLAN and voice VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
VLAN Mapping, Super VLAN
Basic QinQ and selective QinQ
IPv4 routing Static routing, RIPv1, RIPv2, ECMP, URPF, OSPF, IS-IS, and BGP
VRRP
Policy-based routing
Routing policies
IPv6 routing Static routing
RIPng
OSPFv3, BGP4+, ISISv6
IPv6 features Neighbor Discovery (ND) and ND snooping
IPv6 Ping
VRRP6
DHCPv6 snooping, DHCPv6 server, and DHCPv6 relay
MLDv1 and MLDv2
PIM-DM for IPv6, PIM-SM for IPv6
6 Over 4 tunnels
Multicast IGMPv1/v2/v3 snooping
Fast leave
IGMP snooping proxy
MLD snooping
Port-based multicast traffic suppression
Inter-VLAN multicast replication
Controllable multicast
IGMP v1/v2/v3
PIM-SM and PIM-DM
Multicast Source Discovery Protocol (MSDP)
Multicast routing policies
QoS/ACL Traffic classification based on ACLs
Traffic classification based on outer 802.1p fields, inner VLAN IDs, outer VLAN IDs, source
MAC addresses, and Ethernet types
Access control after traffic classification
Traffic policing based on traffic classifiers
Re-marking based on traffic classifiers
Class-based packet queuing
Associating traffic classifiers with traffic behaviors
Rate limiting on inbound and outbound ports
Traffic shaping based on ports and queues
Tail drop
Priority Queuing (PQ)
Deficit Round Robin (DRR)
PQ + DRR scheduling
Weighted Round Robin (WRR)
PQ + WRR scheduling
Reliability STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
BPDU protection, root protection, and loop protection
RRPP ring topology and RRPP multi-instance
Smart Link tree topology and Smart Link multi-instance, providing millisecond-level
protection switchover
Smart Ethernet Protection (SEP)
G.8032 Ethernet Ring Protection Switching (ERPS)
BFD for OSPF, IS-IS, VRRP, and PIM protocols
Enhanced trunk (E-trunk)
Security features Defense against DoS, ARP, and ICMP attacks
Binding of the IP address, MAC address, port number, and VLAN ID of a user
Port isolation, port security, and sticky MAC
MAC-Forced Forwarding (MACFF)
Limit on the number of learned MAC addresses
IEEE 802.1X authentication, MAC address authentication, Portal authentication, and hybrid
authenticatio
Authentication methods, including AAA, RADIUS, and HWTACACS
CPU defense
Super Virtual Fabric (SVF) SVF Parent and Client
Management and iStack (using service ports as stack ports)
maintenance Virtual Cable Test (VCT)
Ethernet OAM (IEEE 802.3ah and IEEE 802.1ag)
SNMPv1/v2/v3
RMON
Web-based network management system and relevant features
System logs and multi-level alarms
GVRP
MUX VLAN
sFlow
Hypertext Transfer Protocol Secure (HTTPS)
SSH1.5/SSH2
