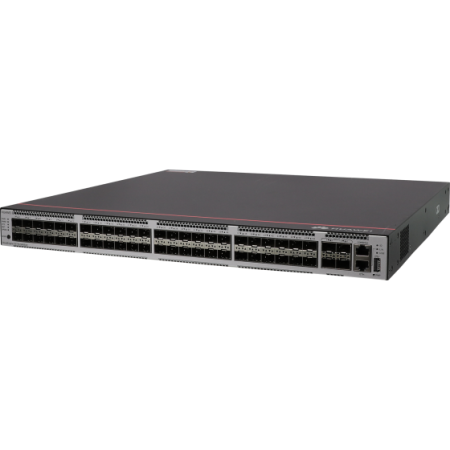

[S5735-S48S4X] Huawei Huawei 48*GE SFP ports, 4*10GE SFP+ ports, without power module

Physical specifications

Dimensions (H x W x D)

43.6 mm x 442 mm x 420mm

Chassis height 1 U
Chassis weight (including packaging)

8.27 kg
Fixed port GE port 48
10GE port 4
Management port
ETH management port

Supported
Console port (RJ45) Supported
USB port USB 2.0
CPU Frequency 1000 MHz
Core 4
Storage Memory (RAM) 1 GB
Flash memory
Hardware: 512MB, of which 306MB is available for users

Power supply system

Power supply type
150 W AC 1000 W DC

Power supply redundancy

1+1 NOTE: the backup power supply is optional.

Rated voltage range

AC input (150 W AC ): 100 V AC to 240 V AC, 50/60 Hz

DC input (1000 W DC): - 48 VDC to -60 V DC

Maximum voltage range

AC input (150 W AC ): 90 V AC to 264 V AC, 47 Hz to 63 Hz

DC input (1000 W DC): - 36 V DC to -72V DC

Maximum input current

150 W AC: 3 A 1000 W DC: 30 A

Maximum power consumption of the device

89 W

Power consumption in the case of 30% traffic load1

67 W
Power consumption in the case of 100% traffic load1

71 W
Reliability
MTBF (year)2 66.33
MTTR (hour) 1.81
Availability > 0.99999
