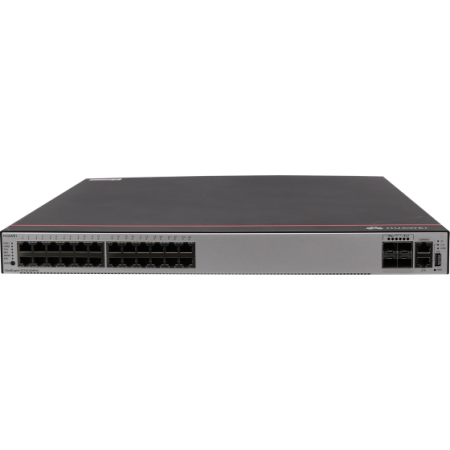

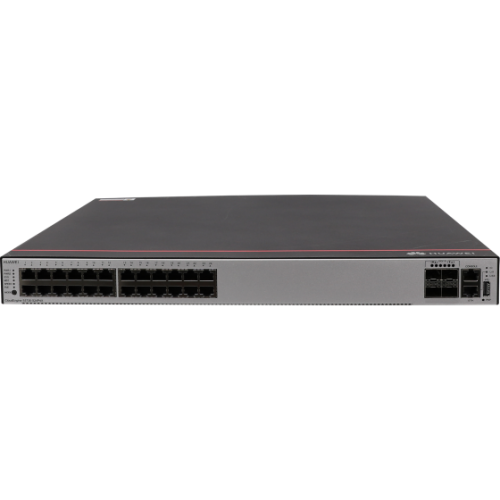

[S5735-S24P4X] Huawei Switch 24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, PoE+, without power module

Physical specifications

Dimensions (H x W x D)

43.6 mm x 442 mm x 420 mm

Chassis height 1 U
Chassis weight (including packaging)

7.39 kg
Fixed port GE port 24 (PoE+)
GE SFP port
10GE port 4
Management port
ETH management port

Supported
Console port (RJ45) Supported
USB port USB 2.0
CPU Frequency 1000 MHz
Core 4
Storage Memory (RAM) 1 GB
Flash memory
Hardware: 512MB, of which 306MB is available for users

Power supply system

Power supply type 1000 W AC PoE
Power supply redundancy

1+1 NOTE: the backup power supply is optional.

Rated voltage range

AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz

Maximum voltage range

AC input (1000 W AC PoE): 90 V AC to 290 V AC, 45 Hz to 65 Hz

High-voltage DC input (1000 W AC PoE): 190 V DC to 290 V DC

(meeting 240 V high-voltage DC certification)

Maximum input current

8 A
Maximum power consumption of the device

65 W (without PD) 847 W (with PD, PD power consumption of 720W)

Power consumption in the case of 30% traffic load1

51 W
Power consumption in the case of 100% traffic load1

56 W
Reliability
MTBF (year)2 59.88
MTTR (hour) 2
Availability > 0.99999
