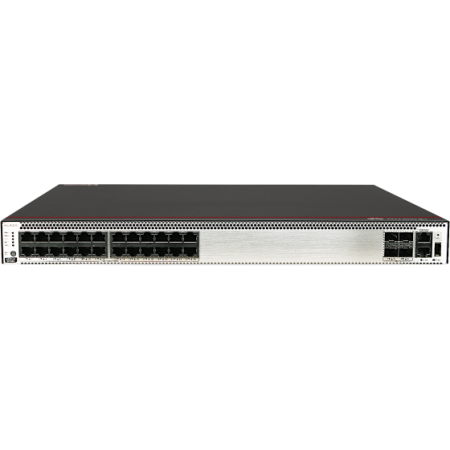

[S5731-H24T4XC] Huawei 24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, 1*expansion slot, without power module

Fixed Port
24 x10/100/1000Base-T ports, 4 x 10GE SFP+ ports

Extended slot One extended slot, support 2 x 40GE, 8 x 10GE Base-T, 2 x 25GE SFP28 or 8 x 10GE SFP+ cards
Power supply type

600 W AC (pluggable); 150 W AC (pluggable); 1000 W DC (pluggable)

Rated voltage range
AC input (600 W AC ): 100 V AC to 240 V AC, 50/60 Hz

AC input (150 W AC ): 100 V AC to 240 V AC, 50/60 Hz

DC input (1000 W DC): -48 VDC to - 60 V DC

Maximum voltage range

AC input (150 W AC ): 90 V AC to 264 V AC, 47 Hz to 63 Hz

AC input (600 W AC ): 90 V AC to 290 V AC, 45 Hz to 65 Hz

High-voltage DC input (600 W AC): 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification)

DC input (1000 W DC): -38.4 V DC to -72V DC

Maximum power consumption

114 W

Noise Under normal temperature (sound power): 57.5dB (A)
Under high temperature (sound power): 70.9dB (A)

Under normal temperature (sound pressure): 47.5dB (A)

Operating temperature
0-1800 m altitude: -5°C to 45°C

1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m.

Storage temperature -40°C to +70°C
Relative humidity
5% to 95% (non condensing)

Surge protection specification (service port)

Common mode: ±6 kV
Surge protection specification (power port)

AC power port: ±6 kV in differential mode, ±6 kV in common mode
DC power port: ±2 kV in differential mode, ±4 kV in common mode

Heat dissipation
Air cooling heat dissipation, intelligent speed adjustment, and pluggable fans

Dimensions (H x W xD) 43.6 mm x 442 mm x420 mm
Chassis height 1 U
Chassis weight (including packaging)

8.4 kg
