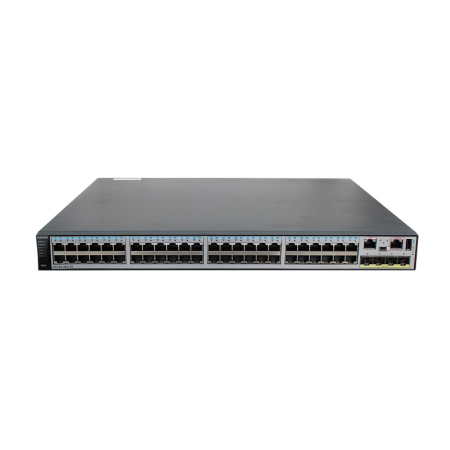

[S5720-56C-PWR-EI-DC] Huawai Switch 48 Ethernet 10/100/1000 PoE+ ports,4 10 Gig SFP+,with 1 interface slot,with 650W DC power supply

Switching Capacity

598 Gbit/s

Forwarding Performance

S5720-56C-PWR-EI-DC: 162 Mpps

Extended Slot

One extended slot supporting a service subcard or stack card

DRAM and Flash Memory

SDRAM: 2 GB

Flash: 340 MB

MAC Address Table

64k

VLAN

4k

IP Routing

Static route, RIPv1, RIPv2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, and routing policy

Security

Hierarchical user management and password protection

AAA authentication

DHCP relay, DHCP server, DHCP snooping, DHCP security, and SAVI

Port isolation, port security, and sticky MAC

NAC and user management based on user groups

Limit on the number of learned MAC addresses

CPU defense

Blacklist and whitelist

MACSec ready

Super Virtual Fabric (SVF)

Working as an SVF client that is plug-and-play with zero configuration

Automatically loading the system software and patching on the client

One-click and automatic delivery of service configurations

Independent running clients

Interoperability

VBST (Compatible with PVST/PVST+/RPVST)

LNP (Similar to DTP)

VCMP (Similar to VTP)

Energy saving

802.3az Energy Efficient Ethernet (EEE) supported
