HUAWEI [S5720-52X-SI-AC] Huawai Switch 48 Ethernet 10/100/1000 ports,4 10 Gig SFP+,with 150W AC power supply S5720-52X-SI-AC.. Product #: S5720-52X-SI-AC based on 0 reviews

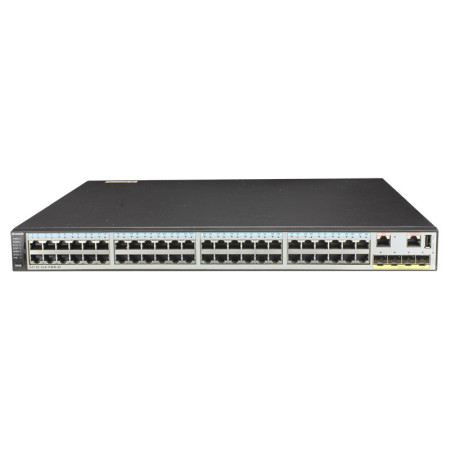

[S5720-52X-SI-AC] Huawai Switch 48 Ethernet 10/100/1000 ports,4 10 Gig SFP+,with 150W AC power supply

MANUFACTURER: HUAWEI
P/N (รหัสสินค้า): S5720-52X-SI-AC

รับประกัน Huawei Network:

รับประกันสินค้า 5 ปี

ผู้รับเหมาและโครงการต่างๆ ราคาพิเศษ SI ราคา พิเศษ

- +

Fixed port 48 10/100/1000 Ethernet ports, 4 10GE SFP+ ports
ETH management port Supported
Console port (RJ45) Supported
Forwarding performance 132 Mpps
Switching capacity 336 Gbit/s
Extended slot NA
CPU
Frequency:800 MHz

Cores:2

Storage
Memory (RAM):512 MB

Flash memory:Hardware: 512MB, of which 240 MB is available for users

MAC address table

IEEE 802.1d compliance
16K MAC address entries
MAC address learning and aging
Static, dynamic, and black hole MAC address entries
Packet filtering based on source MAC addresses
VLAN 4K VLANs
Guest VLAN and voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN mapping
Jumbo frame 10K
Ring protection

RRPP ring topology and RRPP multi-instance
Smart Link tree topology and Smart Link multi-instance, providing millisecond-level
protection switchover
SEP, ERPS(G.8032)
STP(IEEE 802.1d), RSTP(IEEE 802.1w), and MSTP(IEEE 802.1s)
BPDU protection, root protection, and loop protection
IP routing Static route, RIPv1, RIPv2, RIPng, ECMP, OSPF, OSPFv3, BGP, BGP4+, ISIS, ISISv6, VRRP, VRRP6
IPv6 features Neighbor Discovery (ND)
Path MTU (PMTU), MLD v1/v2 snooping
IPv6 ping, IPv6 tracert, and IPv6 Telnet
6 to4 tunnel, ISATAP tunnel, and manually configured tunnel
ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type
6to4 tunnel, ISATAP tunnel, and manually configured tunnel
Multicast forwarding PIM DM, PIM SM, PIM SSM
IGMP v1/v2/v3 snooping and IGMP fast leave
Multicast forwarding in a VLAN and multicast replication between VLANs
Multicast load balancing among member ports of a trunk
Controllable multicast
Port-based multicast traffic statistics
QoS/ACL Rate limiting on packets sent and received by an interface
Packet redirection
Port-based traffic policing and two-rate three-color CAR
Eight queues on each port
WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms
Re-marking of the 802.1p priority and DSCP priority
Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source
MAC address, destination MAC address, source IP address, destination IP address,TCP/UDP port
number, protocol type, and VLAN ID
Rate limiting in each queue and traffic shaping on ports
Security

User privilege management and password protection
DoS attack defense, ARP attack defense, and ICMP attack defense
Binding of the IP address, MAC address, interface, and VLAN
Port isolation, port security, and sticky MAC
Blackhole MAC address entries
MAC Forced Forwarding (MFF)
Limit on the number of learned MAC addresses
802.1x authentication and limit on the number of users on an interface
AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC
SSH v2.0
Hypertext Transfer Protocol Secure (HTTPS), CPU defense, Blacklist and whitelist
802.1x authentication, MAC address authentication, and combined authentication
on a per port basi
Portal authentication on a per VLANIF interface basis, MACSec(hardware ready)
OAM Software OAM:
EFM OAM
CFM OAM
CFM OAM
Super Virtual Fabric (SVF) Working as an SVF client that is plug-and-play with zero configuration
Automatically loading the system software package and patches of clients
One-click and automatic delivery of service configurations
Supports independent running client
Management
and
Maintenance iStack, Virtual cable test, SNMP v1/v2c/v3, RMON
Web-based NMS
System logs and alarms of different levels
sFlow
LLDP/LLDP-MED
