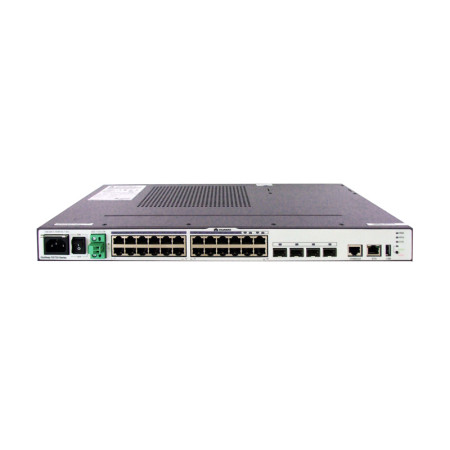

[S5700-24TP-SI-DC] Huawei switch with 24-ports 1000BASE-T, including 4-ports GE SFP combo, 1 DC power fixed, 1 extension slot

Fixed port Twenty 10/100/1000Base-T ports and four GE combo ports
Extended slot One extended slot for a stack card
Forwarding performance 36 Mpps
MAC address table IEEE 802.1d compliance
16 K MAC address entries
MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
VLAN 4K VLANs
Guest VLAN and voice VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN Mapping
Reliability RRPP ring topology and RRPP multi-instance
Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover
SEP
E-Trunk
STP, RSTP, and MSTP
BPDU protection, root protection, and loop protection
MPLS features Not supported
IP routing Static routing, ECMP
RIPv1, RIPv2 and RIPng
IPv6 features Neighbor Discovery (ND)
Path MTU (PMTU)
IPv6 ping, IPv6 tracert, and IPv6 Telnet
ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type
MLD v1/v2 snooping
6to4 tunnel, ISATAP tunnel, and manually configured tunnel
Multicast IGMP v1/v2/v3 snooping and IGMP fast leave
Multicast forwarding in a VLAN and multicast replication between VLANs
Multicast load balancing among member ports of a trunk
Controllable multicast
Port-based multicast traffic statistics
QoS/ACL Rate limiting on packets sent and received by an interface
Packet redirection
Port-based traffic policing and two-rate three-color CAR
Eight queues on each port
WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms
Re-marking of the 802.1p priority and DSCP priority
Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID
Rate limiting in each queue and traffic shaping on ports
Security User privilege management and password protection
DoS attack defense, ARP attack defense, and ICMP attack defense
Binding of the IP address, MAC address, interface, and VLAN
Port isolation, port security, and sticky MAC
Blackhole MAC address entries
Limit on the number of learned MAC addresses
802.1x authentication and limit on the number of users on an interface
AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC
SSH v2.0
Hypertext Transfer Protocol Secure (HTTPS)
CPU defense
Blacklist and whitelist
OAM Supports
Management and maintenance Virtual cable test
Stacking
MAC Forced Forwarding (MFF)
Port mirroring and RSPAN (remote port mirroring)
Remote configuration and maintenance by using Telnet
SNMP v1/v2/v3
RMON
Web NMS
HGMP
System logs and alarms of different levels
GVRP
MUX VLAN
DDR memory 256 MB
Flash memory 32 MB
Mean time between failures (MTBF) 37 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Surge protection: Service port protection Non-PoE switch: ±2 kV in common mode
Surge protection: Power supply protection Non-PoE switch: DC: ±6 kV in differential mode; ±6 kV in common mode
Stack port Two stack ports available on each stack card
Maximum stack bandwidth (bidirectional) 48 Gbit/s
RPS Not supported
PoE The PWR series support PoE.
Input DC voltage: Rated input voltage range -48 V DC to -60 V DC
Input DC voltage: Maximum voltage range -36 V DC to -72 V DC
Maximum system power consumption (100% throughput, 100% PoE loads, full speed of fans) S5700-24TP-SI-DC: 40 W
Operating temperature 0°C to +50°C
Storage temperature -40°C to +70°C
Noise under normal temperature (27°C, sound power) S5700-24TP-SI-DC: 0
Relative humidity 5% RH to 95% RH, noncondensing
Operating altitude Non-PoE switch: DC: 0 m to 2000 m
EMC CISPR22 Class A
CISPR24
EN55022 Class A
EN50024
ETSI EN 300 386 Class A
CFR 47 FCC Part 15 Class A
ICES 003 Class A
AS/NZS CISPR22 Class A
IEC61000-4-2
ITU-T K 20
ITU-T K 44
Environmental standards RoHS
REACH
WEEE
Security IEC 60950-1
EN 60950-1/A11/A12
UL 60950-1
CSA C22.2 No 60950-1
AS/NZS 60950.1
Laser safety IEC60825-1
IEC60825-2
EN60825-1
EN60825-2
Dimensions (W x D x H) 442.0 mm x 220.0 mm x 43.6 mm
Fully loaded ≤ 8.5 kg
Empty loaded ≤ 5 kg
