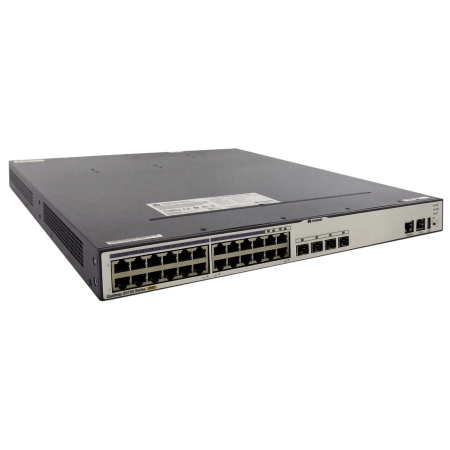

HUAWEI [S5700-24TP-PWR-SI] Huawai Switch 20 10/100/1000Base-T and 4 GE Combo, PoE, Dual Slots of power, Without Power Module S5700-24TP-PWR-SI.. Product #: S5700-24TP-PWR-SI based on 0 reviews

[S5700-24TP-PWR-SI] Huawai Switch 20 10/100/1000Base-T and 4 GE Combo, PoE, Dual Slots of power, Without Power Module

MANUFACTURER: HUAWEI
P/N (รหัสสินค้า): S5700-24TP-PWR-SI

รับประกัน Huawei Network:

รับประกันสินค้า 5 ปี

ผู้รับเหมาและโครงการต่างๆ ราคาพิเศษ SI ราคา พิเศษ

- +

Fixed port 24 Ethernet 10/100/1000 ports, 4 of which are dual-purpose 10/100/1000 or SFP ports
Extended slot One extended slot for a stack card
Forwarding performance 36 Mpps
VLAN 4K VLANs
Guest VLAN and voice VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN Mapping
SuperVLAN(supported by the S5700-SI/S5700-EI/S5700-HI series)
Reliability RRPP ring topology and RRPP multi-instance
Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover
SEP
E-Trunk(supported by the S5700-SI/S5700-EI/S5700-HI series)
STP, RSTP, and MSTP
BPDU protection, root protection, and loop protection
MPLS features Not supported
IP routing Static routing, ECMP
RIPv1, RIPv2 and RIPng
IPv6 features Neighbor Discovery (ND)
Path MTU (PMTU)
IPv6 ping, IPv6 tracert, and IPv6 Telnet
ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type
MLD v1/v2 snooping
6to4 tunnel, ISATAP tunnel, and manually configured tunnel(supported by the S5700-SI/S5700-EI/S5700-HI series)
Multicast IGMP v1/v2/v3 snooping and IGMP fast leave
Multicast forwarding in a VLAN and multicast replication between VLANs
Multicast load balancing among member ports of a trunk
Controllable multicast
Port-based multicast traffic statistics
QoS/ACL Rate limiting on packets sent and received by an interface
Packet redirection
Port-based traffic policing and two-rate three-color CAR
Eight queues on each port
WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms
Re-marking of the 802.1p priority and DSCP priority
Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID
Rate limiting in each queue and traffic shaping on ports
Security User privilege management and password protection
DoS attack defense, ARP attack defense, and ICMP attack defense
Binding of the IP address, MAC address, interface, and VLAN
Port isolation, port security, and sticky MAC
Blackhole MAC address entries
Limit on the number of learned MAC addresses
802.1x authentication and limit on the number of users on an interface
AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC
SSH v2.0
Hypertext Transfer Protocol Secure (HTTPS)
CPU defense
Blacklist and whitelist
OAM Supports
Management and maintenance Virtual cable test
Stacking (The S5700HI do not support this function)
MAC Forced Forwarding (MFF)
Port mirroring and RSPAN (remote port mirroring)
Remote configuration and maintenance using Telnet
SNMP v1/v2/v3
RMON
Web NMS
HGMP
System logs and alarms of different levels
GVRP
MUX VLAN
