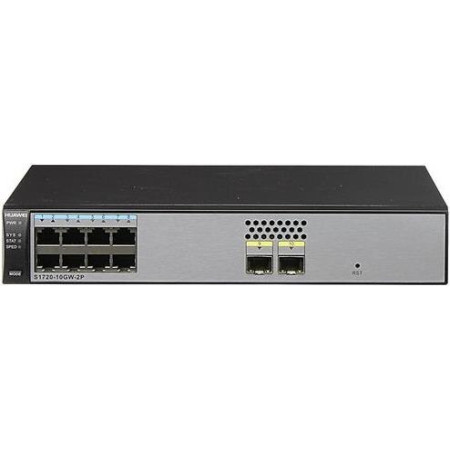

[S1720-10GW-PWR-2P] Huawai Switch 8 Ethernet 10/100/1000 PoE+ ports,2 Gig SFP,124W PoE AC 110/220V

Huawei S1720-10GW-PWR-2P switch with 8-ports 1000BASE-T POE+, 2-ports GE SFP

With 1 AC power fixed

No extension slots

Forwarding perfomance: 15Mpps

Switching capacity: 68Gbps

16K MAC address entries

POE Switch

Huawei's S1700 series enterprise switches (S1700) are next-generation energy-saving Ethernet access switches. The S1700 uses high-performance hardware, which offers a wide array of features to help customers build secure, reliable, high-performance networks. The S1700 is easy to install and maintain, and is ideal for small-sized and medium-sized enterprises, Internet cafes, hotels, and schools.

Tech Specs
Specification

Downlink Ports

8 Ethernet 10/100/1000 ports

Uplink Ports

2 Gig SFP

MAC Address Table

16K MAC

Dimensions (W x D x H)

S1720-10GW-2P: 250 mm x 180 mm x 43.6 mm
S1720-10GW-PWR-2P: 320 mm x 220 mm x 43.6 mm
S1720-28GWR-4P/S1720-28GWR-4X: 442 mm x 220 mm x 43.6 mm
S1720-28GWR-PWR-4P/S1720-28GWR-PWR-4X: 442 mm x 310 mm x 43.6 mm

Input Voltage

100V to 240V AC, 50 Hz/60 Hz

EEE

Supported

Power Consumption

S1720-10GW-2P: 11.86W
S1720-10GW-PWR-2P:
Without PD: 14.63W
With PD: 159.2W (PoE: 123.2W)

Operating Temperature

0°C to 45°C

Humidity (non-condensing)

5% to 95%

Heat Dissipation

Fan-free natural heat dissipation
