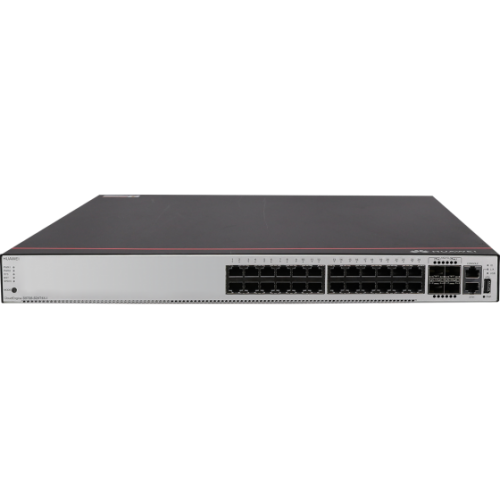

[S5735-S24T4X-I] Huawei 24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, without power module

Physical specifications

Dimensions (H x W x D)

43.6 mm x 442 mm x 420 mm

Chassis height 1 U
Chassis weight (including packaging)

7.21 kg
Fixed port GE port 24
10GE port 4
Management port
ETH management port

Supported
Console port (RJ45) Supported
USB port USB 2.0
CPU Frequency 1000 MHz
Core 4
Storage Memory (RAM) 1 GB
Flash memory
Hardware: 512MB, of which 306MB is available for users

Power supply system

Power supply type
60 W AC

Power supply redundancy

1+1 NOTE: the backup power supply is optional.

Rated voltage range

AC input: 100 V AC to 240 V AC, 50/60 Hz

High-Voltage DC input: 240 V DC

Maximum voltage range

AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz

High-Voltage DC input: 190 V DC to 290 V DC

Maximum input current

60 W AC: 2 A

Maximum power consumption (100% throughput, full speed of fans)

55.2 W

Typical power consumption (30% of traffic load)

Tested according to ATIS standard EEE enabled

36.8 W
Minimum power consumption

23.7 W
Environment parameters Short-term operating temperature
0-1800m altitude: -40°C to +70°C

1800-5000m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220m.

Long-term operating temperature
0-1800m altitude: -40°C to +65°C

1800-5000m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220m.

Reliability
MTBF (year)2 62.88
MTTR (hour) 2
Availability > 0.99999
