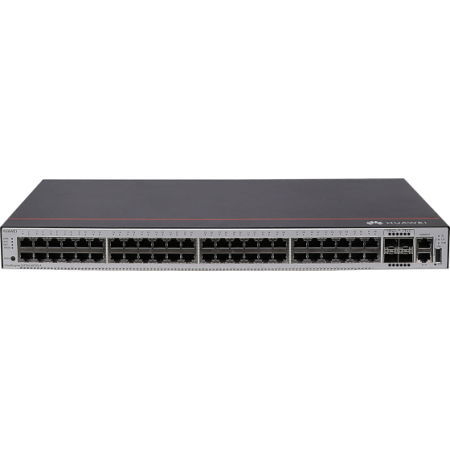

[S5735-L48P4X-A] Huawei Switch 48*10/100/1000BASE-T ports, 4*10GE SFP+ ports, PoE+, 1*1000W PoE AC power module

Physical specifications

Dimensions (H x W x D)

43.6 mm x 442 mm x 420 mm

Chassis height 1 U
Chassis weight (including packaging)

8.7 kg
Fixed port
GE port 48 (PoE+)
10GE port 4
Management port Console port (RJ45) Supported
USB port USB 2.0
CPU Frequency 1000 MHz
Core 4
Storage Memory (RAM) 1 GB
Flash memory
Hardware: 512 MB, of which 306 MB is available for users

Power supply system

Power supply type 1000 W AC PoE
Rated voltage rang

100 V AC to 240V AC, 50/60 Hz

Maximum voltage range

AC input: 90 V AC to 290 V AC, 45 Hz to 66 Hz

High-voltage DC input: 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification)

Maximum input current

8A
Maximum power consumption of the device

80 W (without PD) 914 W (with PD, PD power consumption of 874 W)

Power consumption in the case of 30% traffic load1

59 W
Power consumption in the case of 100% traffic load1

68 W
Reliability
MTBF (year)2 61.7
MTTR (hour) 1.94
Availability > 0.99999
