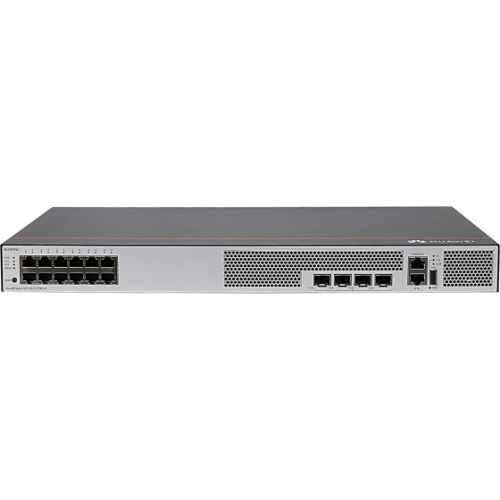

[S5735-L12P4S-A] Huawei Switch 12*10/100/1000BASE-T ports, 4*GE SFP ports, PoE+, AC power

Physical specifications

Dimensions (H x W x D)

43.6 mm x 442 mm x 220 mm

Chassis height 1 U
Chassis weight (including packaging)

4.24 kg
Fixed port GE Base-T port 12 (PoE+)
GE SFP port 4
10GE port NA
Management port Console port (RJ45) Supported
USB port USB 2.0
CPU Frequency 1000 MHz
Core 4
Storage Memory (RAM) 1 GB
Flash memory
Hardware: 512MB, of which 306MB is available for users

Power supply system

Power supply type Built-in AC
Rated voltage rang

100 V AC to 240V AC, 50/60 Hz

Maximum voltage range

AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz

High-voltage DC input: 190V DC to 290 V DC (meeting 240 V highvoltage DC certification)

Maximum input current

6 A
Maximum power consumption of the device

49 W (without PD) 441 W (with PD, PD power consumption of 360 W)

Power consumption in the case of 30% traffic load1

38 W
Power consumption in the case of 100% traffic load1

40 W
Reliability
MTBF (year)2 85.52
MTTR (hour) 1.4
Availability > 0.99999
