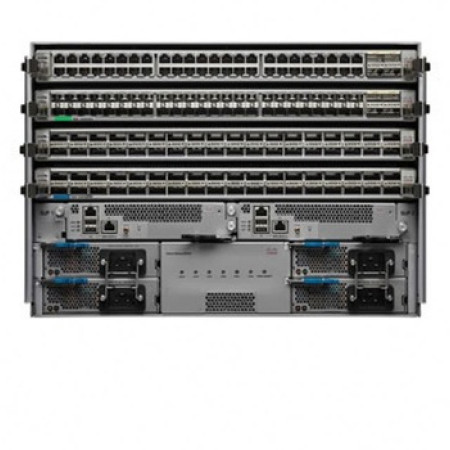

[N9K-C9504-B2] Cisco Nexus 9504 Chassis Bundle with 1 Sup, 3 PS, 2 SC, 3 Fan Trays, 6 Fabric Modules

Device Type Switch - L3 - managed - with Cisco Nexus 9500 Supervisor (N9K-SUP-A), 2x Cisco Nexus 9500 System Controller (N9K-SC-A), 6x Cisco Fabric Module (N9K-C9504-FM)
Enclosure Type Rack-mountable 7.1U
Capacity Virtual interfaces (VLANs): 4096
Routing Protocol Static IP routing
Remote Management Protocol SNMP 1, SNMP 2, RMON, SNMP 3, SSH-2
Authentication Method RADIUS, TACACS+
Features Flow control, modular design, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), RDMA support, LLDP support, Link Aggregation Control Protocol (LACP), Class of Service (CoS), DiffServ Code Point (DSCP) support
Compliant Standards IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 801.1p, IEEE 802.1ab (LLDP), IEEE 802.3ba
Expansion / Connectivity
Expansion Slots 8 (total) / 2 (free) x expansion slot
Installed Modules Qty (Max) 8 (installed) / 8 (max)
Power
Power Device Internal power supply - hot-plug
Installed Qty 3 (installed) / 3 (max)
Power Redundancy Yes
Power Provided 3000 Watt
Voltage Required AC 230 V (50 - 60 Hz)
Features Front-to-rear air?ow
Miscellaneous
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, GB 4943, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, VCCI Class A, KN22, CNS 13438(95) Class A, EN 300386
Dimensions & Weight
Width 17.5 in
Depth 30 in
Height 8 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
