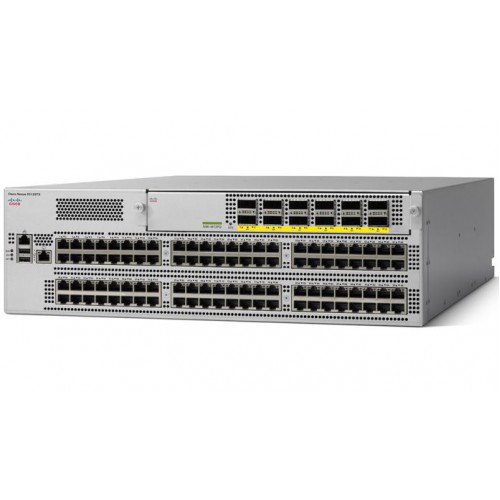

[N9K-C93128TX] Cisco Nexus 9300 with 96p 1/10G-T and 8p 40G QSFP

Ports 96 x 1 Gigabit / 10 Gigabit SFP+ + 8 x 40 Gigabit QSFP+
Performance Bandwidth: 128 Gbps
Capacity Longest prefix match (LPM) entries (IPv4): 16000 ¦ Host table entries (IPv4): 88000 ¦ MAC addresses: 160000 ¦ IPv4 routes (Multicast): 32000 ¦ Virtual interfaces (VLANs): 4096
Remote Management Protocol SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2
Authentication Method RADIUS, TACACS+
Features Flow control, modular design, load balancing, VLAN support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, RDMA support, LLDP support, Link Aggregation Control Protocol (LACP), DiffServ Code Point (DSCP) support
Compliant Standards IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 801.1p, IEEE 802.3ba
Expansion / Connectivity
Interfaces 96 x 10GBase-X SFP+ ¦ 8 x 40Gbit LAN QSFP+ uplink
Expansion Slots 1 (total) / 0 (free) x expansion slot
Installed Modules Qty (Max) 1 (installed) / 1 (max)
Power
Power Device Internal power supply - hot-plug
Installed Qty 0 (installed) / 2 (max)
Power Redundancy Yes
Miscellaneous
Compliant Standards CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, GB 4943, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, EN 61000-3-1, VCCI Class A, KN22 Class A, EN 300386, AS/NZS CISPR 22
Dimensions & Weight
Width 17.5 in
Depth 22.5 in
Height 5.2 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
