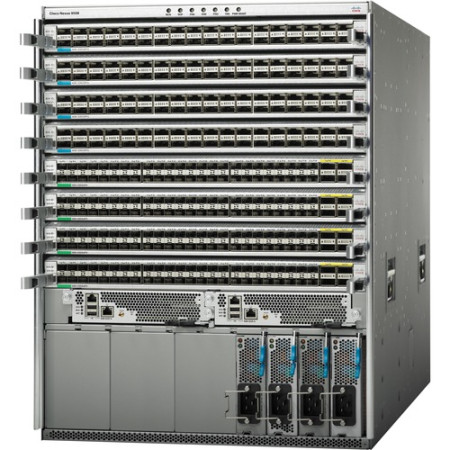

[C1-N9K-C9508-B3R8Q] Cisco ONE Nexus 9508 Switch Bundle

Device Type Switch - L3 - managed - with 2 x Cisco Nexus 9500 Supervisor (N9K-SUP-A), 2x Cisco Nexus 9500 System Controller (N9K-SC-A), 4x Cisco Fabric Module (N9K-C9504-FM), 4x Cisco Nexus X9564TX line card, 8x QSFP-40G-SR-BD
Enclosure Type Rack-mountable 13U
Capacity Virtual interfaces (VLANs): 4096
Routing Protocol Static IP routing
Remote Management Protocol SNMP 1, SNMP 2, RMON, SNMP 3, SSH-2
Authentication Method RADIUS, TACACS+
Features Flow control, modular design, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), RDMA support, LLDP support, Link Aggregation Control Protocol (LACP), Class of Service (CoS), DiffServ Code Point (DSCP) support
Compliant Standards IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 801.1p, IEEE 802.1ab (LLDP), IEEE 802.3ba
Expansion / Connectivity
Expansion Slots 18 expansion slot
Power
Power Device Internal power supply - hot-plug
Installed Qty 6
Power Provided 3000 Watt
Voltage Required AC 230 V (50 - 60 Hz)
Features Side Intake airflow
Miscellaneous
Included Accessories 3 fan trays, accessory kit, 2 x Fabric Module slot covers, 2 power supply slot covers
Rack Mounting Kit Included
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, GB 4943, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, VCCI Class A, KN22, CNS 13438(95) Class A, EN 300386
Software / System Requirements
OS Required Cisco NX-OS 6.1(2)I3(3a)
Dimensions & Weight
Width 17.5 in
Depth 31.8 in
Height 22.7 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
