CISCO [C1-N9K-C9372PXB18Q] Cisco ONE Nexus 9372PX Switch - L3 - managed C1-N9K-C9372PXB18Q.. Product #: C1-N9K-C9372PXB18Q based on 0 reviews

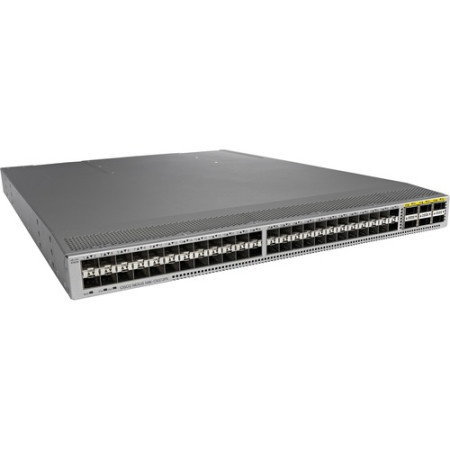

[C1-N9K-C9372PXB18Q] Cisco ONE Nexus 9372PX Switch - L3 - managed

MANUFACTURER: CISCO
P/N (รหัสสินค้า): C1-N9K-C9372PXB18Q
- +

Device Type Switch - 48 ports - L3 - managed - with 8 x QSFP-40G-SR-BD
Enclosure Type Desktop, rack-mountable 1U
Subtype 10 Gigabit Ethernet
Ports 48 x 1 Gigabit / 10 Gigabit SFP+ + 6 x 40 Gigabit QSFP+ (uplink)
Performance Bandwidth: 1.44 Tbps
Capacity Longest prefix match (LPM) entries (IPv4): 16000 ¦ Host table entries (IPv4): 208000 ¦ IPv4 routes (Multicast): 32000 ¦ Virtual interfaces (VLANs): 4096 ¦ Equal-Cost Multipathing (ECMP) ways: 64 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ Rapid Per-VLAN Spanning Tree Plus instances: 507 ¦ Virtual Routing and Forwarding (VRF) entries: 1000 ¦ IGMP snooping entries: 32000 ¦ ACL entries (ingress): 4000 ¦ ACL entries (egress): 1000
MAC Address Table Size 96K entries
Features VLAN support, IGMP snooping, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Per-VLAN Rapid Spanning Tree (PVRST), Hot Standby Router Protocol (HSRP) support, Virtual Routing and Forwarding (VRF), Virtual PortChannel (vPC) technology, VXLAN tunnel endpoints (VTEP) support
Processor : 2.5 GHz
RAM 16 GB
Expansion / Connectivity
Interfaces 48 x 10GBase-T SFP+ downlink ¦ 2 x USB ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x serial (RS-232) RJ-45 ¦ 6 x 40Gbit LAN QSFP+ uplink
Power
Power Device Internal power supply - hot-plug
Installed Qty 0 (installed) / 2 (max)
Power Redundancy Yes
Miscellaneous
Rack Mounting Kit Included
Compliant Standards CISPR 22 Class A, CISPR 24, EN55024, AS/NZS 60950-1, EMC, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1 Second Edition, RoHS, GB 4943, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, CNS 13438(95) Class A, KN22 Class A, EN 300386, AS/NZS CISPR22:2004 Class A, EN61000-3-2, EN61000-3-3
Software / System Requirements
Software Included Cisco NX-OS
Dimensions & Weight
Width 17.3 in
Depth 22.5 in
Height 1.7 in
Weight 22.27 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
