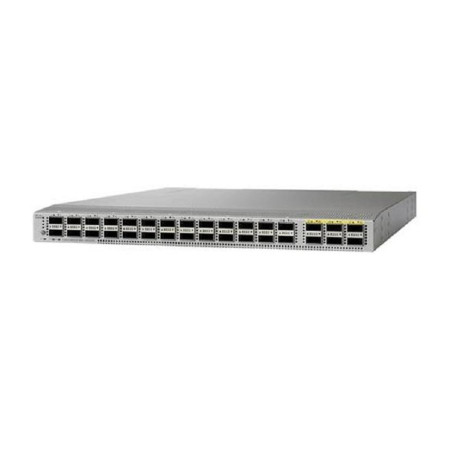

[C1-N9K-C9332PQ] Cisco ONE Nexus 9332PQ Switch - L3 - managed

Device Type Switch - 32 ports - L3 - managed
Enclosure Type Desktop, rack-mountable 1U
Subtype 40 Gigabit Ethernet
Ports 26 x 40 Gigabit QSFP+ (breakout compatible) + 6 x 40 Gigabit QSFP+ (uplink)
Performance Bandwidth: 2.56 Tbps
Capacity Longest prefix match (LPM) entries (IPv4): 16000 ¦ Host table entries (IPv4): 208000 ¦ IPv4 routes (Multicast): 32000 ¦ Virtual interfaces (VLANs): 4096 ¦ Equal-Cost Multipathing (ECMP) ways: 64 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ Rapid Per-VLAN Spanning Tree Plus instances: 507 ¦ Virtual Routing and Forwarding (VRF) entries: 1000 ¦ IGMP snooping entries: 32000 ¦ ACL entries (ingress): 4000 ¦ ACL entries (egress): 1000
MAC Address Table Size 96K entries
Processor : 2.5 GHz
RAM 16 GB
Expansion / Connectivity
Interfaces 26 x 40Gbit LAN QSFP+ downlink ¦ 2 x USB ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x serial (RS-232) RJ-45 ¦ 6 x 40Gbit LAN QSFP+ uplink
Power
Power Device Internal power supply - hot-plug
Installed Qty 0 (installed) / 2 (max)
Power Redundancy Yes
Miscellaneous
Compliant Standards CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, GB 4943, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN22 Class A, EN 300386
Software / System Requirements
Software Included Cisco NX-OS, Cisco ONE Foundation
Dimensions & Weight
Width 17.3 in
Depth 22.5 in
Height 1.7 in
Weight 21.38 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
