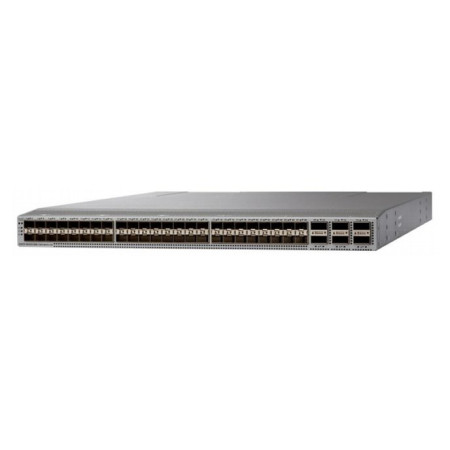

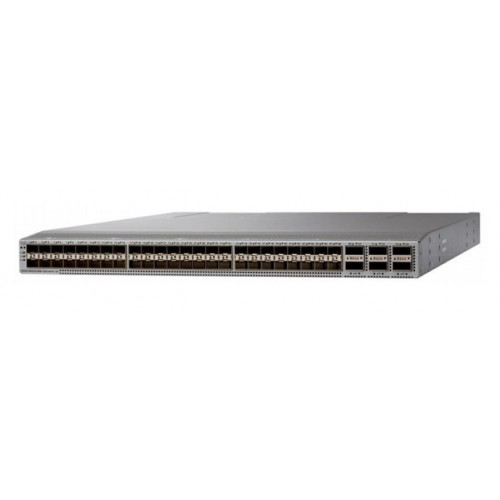

[C1-N9K-C93180-B18Q] Cisco ONE Nexus 93180YC-EX Switch Bundle - L3

Device Type Switch - 48 ports - L3 - with 8 x QSFP-40G-SR-BD
Enclosure Type Desktop, rack-mountable 1U
Ports 48 x 1 Gigabit / 10 Gigabit SFP+ + 8 x 40 Gigabit QSFP+
Performance Bandwidth: 3.6 Tbps
Capacity Longest prefix match (LPM) entries (IPv4): 16000 ¦ Host table entries (IPv4): 256000 ¦ Host table entries (IPv6): 128000 ¦ Multicast routes: 16000 ¦ Virtual interfaces (VLANs): 4096 ¦ ECMP paths: 64 ¦ Maximum number of port channels: 512 ¦ Virtual Routing and Forwarding (VRF) entries: 16000 ¦ Maximum number of links in a port channel: 32 ¦ ACL entries (ingress): 4000 ¦ ACL entries (egress): 2000 ¦ IGMP snooping groups: 32000
MAC Address Table Size 96K entries
Routing Protocol OSPF, BGP, EIGRP, MSDP
Remote Management Protocol SNMP 1, SNMP 2, SNMP 3
Features MPLS support, VLAN support, IGMP snooping, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, hot swappable 4 fans, port exhaust, Virtual PortChannel (vPC) technology, In-Service Software Upgrade (ISSU), Virtual Extensible LAN (VXLAN)
Expansion / Connectivity
Interfaces 48 x 1/10/25Gbit LAN SFP+ ¦ 8 x 40Gbit LAN QSFP+ ¦ 1 x USB ¦ 1 x management (LAN) RJ-45 ¦ 1 x serial (RS-232) RJ-45 ¦ 1 x management SFP+
Expansion Slots 16 fabric module slot
Power
Power Device Internal power supply - hot-plug
Installed Qty 2 (installed) / 2 (max)
Power Redundancy Yes
Power Redundancy Scheme N+1
Power Provided 650 Watt
Voltage Required AC 100/240 V (50 - 60 Hz)
Miscellaneous
Rack Mounting Kit Included
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, FCC CFR47 Part 15, UL 60950-1 Second Edition, RoHS, GB 4943, ICES Class A, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN22 Class A, EN 300386, AS/NZS CISPR 22, CAN/CSA C22.2 No. 60950-1 Second Edition, KN 61000-4, CNS Class A
Software / System Requirements
Software Included Cisco NX-OS
Dimensions & Weight
Width 17.3 in
Depth 22.5 in
Height 1.7 in
Weight 20.5 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
