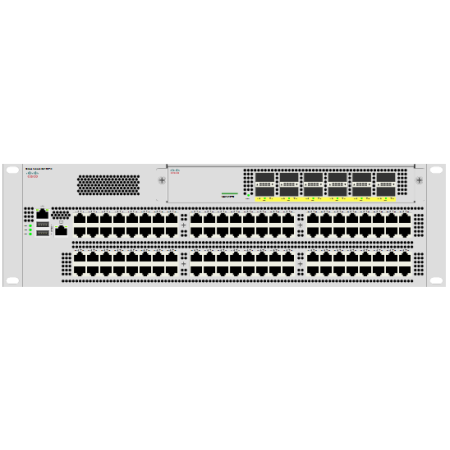

[C1-N9K-C93128TX] Cisco ONE Nexus 93128TX Switch - L3 - managed

Device Type Switch - 96 ports - L3 - managed
Enclosure Type Desktop, rack-mountable 3U
Subtype 10 Gigabit Ethernet
Ports 96 x 10GBase-T + 8 x 40 Gigabit QSFP+
Performance Bandwidth: 2.56 Tbps
Capacity Longest prefix match (LPM) entries (IPv4): 16000 ¦ Host table entries (IPv4): 88000 ¦ IPv4 routes (Multicast): 32000 ¦ Virtual interfaces (VLANs): 4096 ¦ Equal-Cost Multipathing (ECMP) ways: 64 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ Rapid Per-VLAN Spanning Tree Plus instances: 507 ¦ Virtual Routing and Forwarding (VRF) entries: 1000 ¦ IGMP snooping entries: 32000
MAC Address Table Size 96K entries
Routing Protocol IS-IS, BGP, EIGRP, HSRP, VRRP, OSPFv2, PIM-SM, OSPFv3, MSDP, static IPv4 routing, static IPv6 routing, ECMP, Bidirectional Forwarding Detection (BFD), VRRPv3, BGP for IPv6
Remote Management Protocol SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2
Authentication Method RADIUS, TACACS+
Features Load balancing, IGMP snooping, Syslog support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, priority-based flow control, Access Control List (ACL) support, Quality of Service (QoS), Per-VLAN Spanning Tree Plus (PVST+), Bidirectional Forwarding Detection (BFD), Uni-Directional Link Detection (UDLD), DHCP relay, Class of Service (CoS), TFTP client, Virtual PortChannel (vPC) technology, DiffServ Code Point (DSCP) support, 3 fans
Compliant Standards IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 801.1p, IEEE 802.1ab (LLDP), IEEE 802.3ba
Expansion / Connectivity
Interfaces 96 x 10GBase-T RJ-45 ¦ 8 x 40Gbit LAN QSFP+ uplink ¦ 2 x USB ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x serial (RS-232) RJ-45
Expansion Slots 1 (total) / 0 (free) x expansion slot
Power
Power Device Internal power supply - hot-plug
Installed Qty 0 (installed) / 2 (max)
Power Redundancy Yes
Miscellaneous
Included Accessories Rack mount kit
Compliant Standards CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, GB 4943, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN22 Class A, EN 300386
Software / System Requirements
Software Included Cisco NX-OS, Cisco ONE Foundation
Dimensions & Weight
Width 17.5 in
Depth 22.5 in
Height 5.2 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
