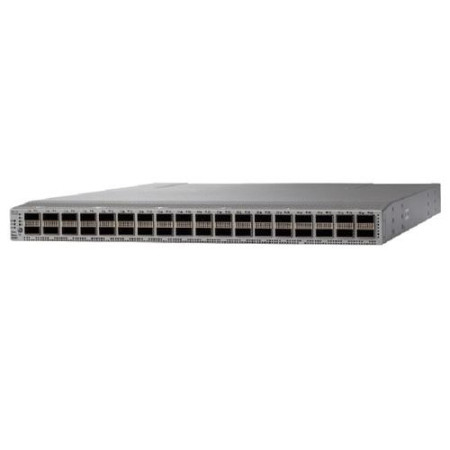

[C1-N9K-C9236C] Cisco ONE Nexus 9236C Switch - L3 - managed

Device Type Switch - 36 ports - L3 - managed
Enclosure Type Rack-mountable 1U
Subtype 100 Gigabit Ethernet
Ports 36 x 100 Gigabit QSFP28
Performance Bandwidth: 7.2 Tbps
Capacity Longest prefix match (LPM) entries (IPv4): 256000 ¦ Host table entries (IPv4): 256000 ¦ IPv4 routes (Multicast): 32000 ¦ IGMP groups: 32000 ¦ Virtual interfaces (VLANs): 4096 ¦ Virtual Routing and Forwarding (VRF) entries: 16000 ¦ ECMP groups: 256 ¦ MST instances: 64
MAC Address Table Size 256K entries
Routing Protocol OSPF, RIP-2, BGP, EIGRP, PIM-SM, PIM-SSM, MSDP, ECMP, MPLS
Remote Management Protocol HTTP, HTTPS
Features Virtual Extensible LAN (VXLAN), 30 MB shared buffer
RAM 16 GB
Built-in Devices 64 GB SSD
Expansion / Connectivity
Interfaces 36 x 100Gbit LAN QSFP28 ¦ 1 x USB ¦ 1 x serial (RS-232) ¦ 3 x management RJ-45
Power
Power Device Internal power supply - hot-plug
Installed Qty 0 (installed) / 2 (max)
Power Redundancy Optional
Voltage Required AC 120/230 V / DC -48 -60 V (50 - 60 Hz)
Miscellaneous
Included Accessories Accessory kit
Rack Mounting Kit Included
Compliant Standards CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, GB 4943, Directive 2004/108/EC, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class A, KN22 Class A, EN 300386, AS/NZS CISPR22:2004 Class A, EN61000-3-2, EN61000-3-3, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition
Dimensions & Weight
Width 17.3 in
Depth 22.5 in
Height 1.7 in
Weight 18.3 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
