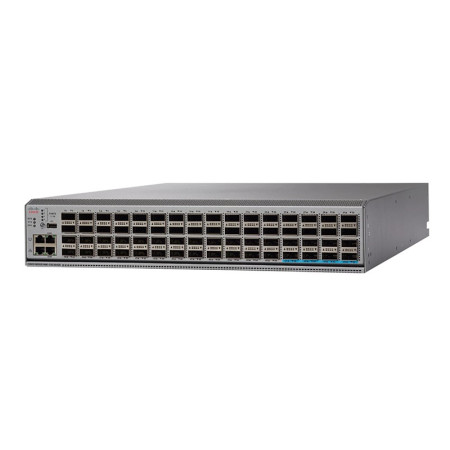

[C1-N9K-C92304QC] Cisco ONE Nexus 92304QC Switch - L3 - managed

Device Type Switch - 56 ports - L3 - managed
Enclosure Type Desktop, rack-mountable 2U
Subtype 40 Gigabit Ethernet
Ports 56 x 40 Gigabit QSFP+ (breakout compatible) + 8 x 100 Gigabit QSFP28
Performance Bandwidth: 6.08 Tbps
Capacity Longest prefix match (LPM) entries (IPv4): 16000 ¦ HSRP groups: 490 ¦ MAC addresses: 96000 ¦ Virtual interfaces (VLANs): 4096 ¦ Equal-Cost Multipathing (ECMP) ways: 64 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ Rapid Per-VLAN Spanning Tree Plus instances: 507 ¦ Virtual Routing and Forwarding (VRF) entries: 16000 ¦ IGMP snooping entries: 32000 ¦ ACL entries (ingress): 4000 ¦ ACL entries (egress): 2000
MAC Address Table Size 96K entries
Routing Protocol OSPF, RIP-2, BGP, EIGRP, HSRP, PIM-SM, PIM-SSM, MSDP, ECMP
Features VLAN support, IGMP snooping, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Per-VLAN Rapid Spanning Tree (PVRST), Hot Standby Router Protocol (HSRP) support, Virtual Routing and Forwarding (VRF), port exhaust, VXLAN tunnel endpoints (VTEP) support
RAM 16 GB
Expansion / Connectivity
Interfaces 56 x 40Gbit LAN QSFP+ (breakout compatible) ¦ 1 x USB ¦ 3 x management RJ-45 ¦ 1 x serial (RS-232) RJ-45 ¦ 8 x 100Gbit LAN QSFP28
Power
Power Device Internal power supply - hot-plug
Installed Qty 2 (installed) / 2 (max)
Power Redundancy Yes
Power Provided 650 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
Included Accessories Accessory kit
Rack Mounting Kit Included
Compliant Standards CISPR 24, EN55024, AS/NZS 60950-1, EMC, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1 Second Edition, RoHS, GB 4943, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, CNS 13438(95) Class A, KN22 Class A, EN 300386, AS/NZS CISPR22:2004 Class A, EN61000-3-2, EN61000-3-3
Software / System Requirements
Software Included Cisco NX-OS
Dimensions & Weight
Width 17.5 in
Depth 22.5 in
Height 3.5 in
Weight 33.02 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
