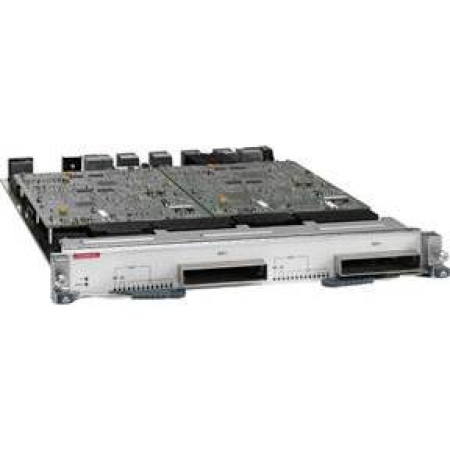

[N7K-M202CF-22L] Cisco Nexus 7000 Ethernet Module - M2-Series 2-Port 100 Gigabit with XL Option - Switch - 2 x CFP - plug-in module

Device Type Switch - 2 ports
Enclosure Type Plug-in module
Subtype 100 Gigabit Ethernet
Ports 2 x CFP
Capacity IPv4 routes: up to 1000000 ¦ IPv6 routes: up to 350000 ¦ NetFlow entries: 512000 ¦ ACL: 128000
MAC Address Table Size 128K entries
Jumbo Frame Support 9216 bytes
Encryption Algorithm 128-bit AES
Features 128-bit encryption, MPLS support, VLAN support, IPv6 support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Deficit Weighted Round Robin (DWRR), Shaped Round Robin (SRR)
Compliant Standards IEEE 802.1ae
RAM 2 GB
Expansion / Connectivity
Interfaces 2 x 100Gb Ethernet - CFP
Miscellaneous
MTBF 143,690 hours
Compliant Standards NEBS level 3, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, EMC, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, IEC 60950-1, UL 60950-1 Second Edition, EN 60601-1-2, CAN/CSA C22.2 No. 60950-1
Dimensions & Weight
Width 15.3 in
Depth 21.9 in
Height 1.7 in
Weight 16.98 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
