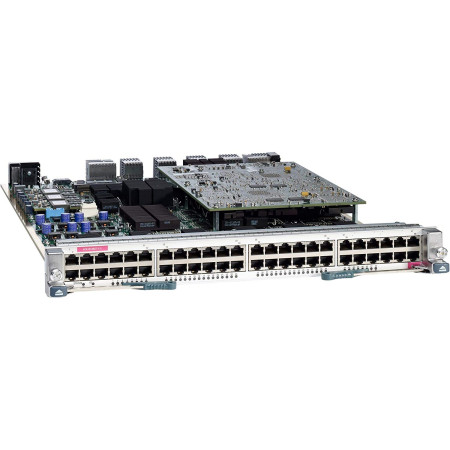

[N7K-M148GT-11L] Cisco Nexus 7000 Ethernet Module - M1-Series with XL Option

Device Type Switch - 48 ports
Enclosure Type Plug-in module
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000
Capacity IPv4 routes: up to 1000000 ¦ IPv6 routes: up to 350000 ¦ NetFlow entries: 512000 ¦ ACL: 128000
MAC Address Table Size 128K entries
Jumbo Frame Support 9216 bytes
Features MPLS support, VLAN support, IPv6 support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Deficit Weighted Round Robin (DWRR), Shaped Round Robin (SRR)
Compliant Standards IEEE 802.1ae
RAM 2 GB
Expansion / Connectivity
Interfaces 48 x 1000Base-T RJ-45
Miscellaneous
MTBF 73,974 hours
Compliant Standards NEBS level 3, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60601-1-2, GB 4943
Dimensions & Weight
Width 15.3 in
Depth 21.9 in
Height 1.7 in
Weight 14.11 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
