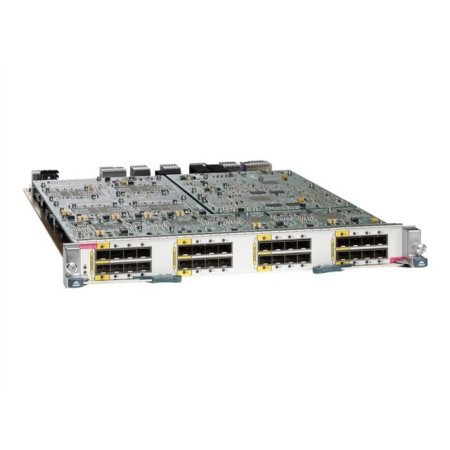

[N7K-M132XP-12L] Cisco Nexus 7000 Ethernet Module - 32-Port 10 Gigabit with XL Option - Switch - 32 x 10 Gigabit SFP+

Device Type Switch - 32 ports
Enclosure Type Plug-in module
Subtype 10 Gigabit Ethernet
Compatible Slots 1 x expansion slot
Ports 32 x 10 Gigabit SFP+
Performance Switching capacity: 80 Gbps
Capacity IPv4 routes: up to 1000000 ¦ IPv6 routes: up to 350000 ¦ NetFlow entries: 512000 ¦ ACL: 128000
MAC Address Table Size 128K entries
Jumbo Frame Support 9216 bytes
Encryption Algorithm 128-bit AES
Features MPLS support, VLAN support, IPv6 support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Deficit Weighted Round Robin (DWRR), Shaped Round Robin (SRR)
RAM 2 GB
Status Indicators Port status, link OK, status, link/activity
Expansion / Connectivity
Interfaces 32 x 10Gb Ethernet - SFP+
Miscellaneous
MTBF 50,081 hours
Compliant Standards NEBS level 3, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60601-1-2, GB 4943
Dimensions & Weight
Width 15.3 in
Depth 21.9 in
Height 1.7 in
Weight 16.98 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
