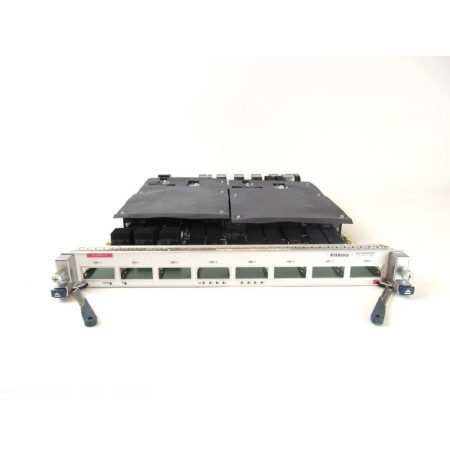

[N7K-M108X2-12L] Cisco Nexus 7000 Ethernet Module - M1-Series 8-Port 10 Gigabit with XL Option (requires X2)

Device Type Switch - 8 ports
Enclosure Type Plug-in module
Subtype 10 Gigabit Ethernet
Compatible Slots 1 x expansion slot
Ports 8 x X2
MAC Address Table Size 128K entries
Remote Management Protocol CLI
Features MPLS support, VLAN support, Weighted Round Robin (WRR) queuing, Access Control List (ACL) support, Jumbo Frames support
Compliant Standards IEEE 802.1ae
RAM 2 GB
Status Indicators Port status, link OK, status, link/activity
Expansion / Connectivity
Interfaces 8 x X2
Miscellaneous
MTBF 52,107 hours
Compliant Standards NEBS level 3, ETSI, CISPR 22 Class A, CISPR 24, EN 61000-3-2, ICES-003, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, CISPR 22, AS/NZS 60950-1, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A, EN 60601-1-2, NEBS
Software / System Requirements
OS Required Cisco NX-OS 5.0 or later
Dimensions & Weight
Width 15.3 in
Depth 21.9 in
Height 1.7 in
Weight 14.11 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
