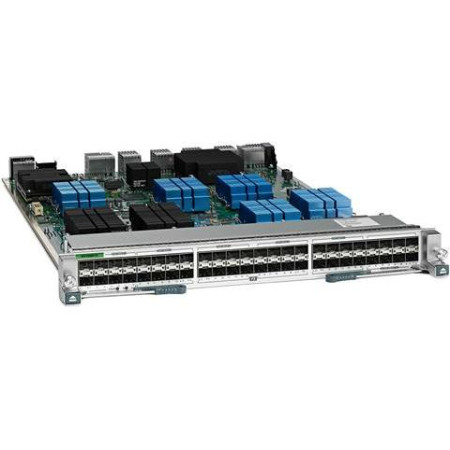

[N7K-F348XP-25] Cisco Nexus 7000 Ethernet Module - F3-Series 48-Port Fiber 1 and 10G

Ports Gigabit Ethernet / 10 Gigabit SFP+ / SFP (mini-GBIC) x 48
Connectivity Technology Wired
Data Link Protocol GigE, 10 GigE
Performance Throughput: 480 Gbps ¦ Forwarding performance: 720 Mpps
Capacity Virtual interfaces (VLANs): 4096 ¦ Host table entries (IPv6): 32000 ¦ Host table entries (IPv4): 64000 ¦ ACL entries: 16000 ¦ Jumbo frame size: 9216
MAC Address Table Size 64K entries
Remote Management Protocol CLI
Status Indicators Link OK, Unit ID, status
Features MPLS support, IPv6 support, Access Control List (ACL) support, Jumbo Frames support, IPv4 support
Compliant Standards IEEE 802.1ae
Expansion / Connectivity
Interfaces 48 x 10Gb Ethernet - SFP/SFP+
Miscellaneous
Compliant Standards ETSI, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, EMC, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, NEBS, CSA C22.2 No. 60950-1, AS/NZS 60950, GR-1089-CORE, VCCI Class A, CNS 13438(95) Class A, GR-63-CORE, KN22 Class A, EN 300386, ETSI 300 019, AS/NZS CISPR22:2006 Class A
Dimensions & Weight
Width 15.3 in
Depth 21.9 in
Height 1.7 in
Weight 14.99 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
