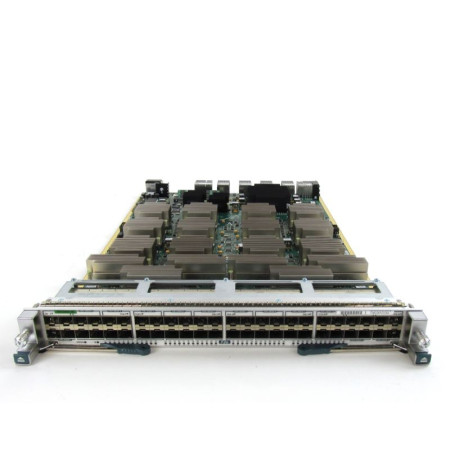

[N7K-F248XP-25] Cisco Nexus 7000 Ethernet Module - 48-Port 1 and 10 Gigabit - F2-Series - Switch - L3 - 48 x 1 Gigabit / 10 Gigabit SFP+

Device Type Switch - 48 ports - L3
Enclosure Type Plug-in module
Subtype 10 Gigabit Ethernet
Ports 48 x 1 Gigabit / 10 Gigabit SFP+
Performance Forwarding performance: 720 Mpps ¦ Switching fabric bandwidth: 550 Gbps
Capacity Virtual interfaces (VLANs): 4096 ¦ IPv6 routing table entries: 32768 ¦ IPv6 routing table entries: 16384 ¦ ACL: 16384 ¦ Policies: 1024 ¦ Adjacency entries: 16384
MAC Address Table Size 16K entries
Jumbo Frame Support 9216 bytes
Features IPv6 support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, IPv4 support
Status Indicators Status, link/activity
Expansion / Connectivity
Interfaces 48 x 10Gb Ethernet / 1Gb Ethernet - SFP+
Miscellaneous
MTBF 83,477 hours
Compliant Standards NEBS level 3, ETSI, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, ICES-003, VCCI Class A ITE, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, EMC, EN300-386, UL 60950-1 Second Edition, FCC Part 15 A
Software / System Requirements
OS Required Cisco NX-OS 6.0 or later
Dimensions & Weight
Width 15.3 in
Depth 21.9 in
Height 1.7 in
Weight 13.89 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
