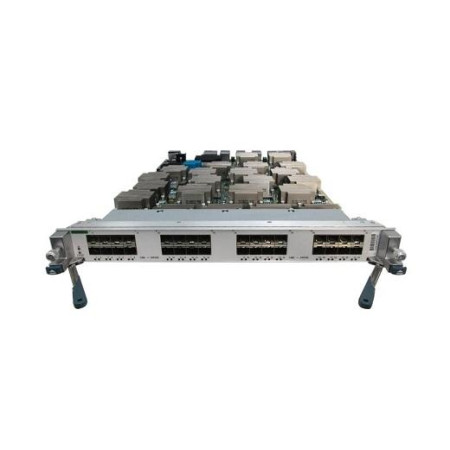

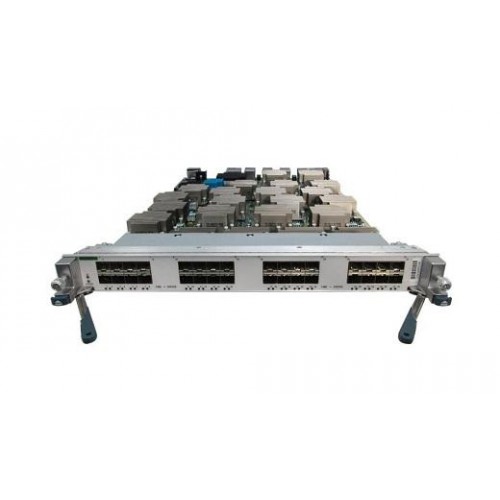

[N7K-F132XP-15] Cisco Nexus 7000 Ethernet Module - 32 Port 1G/10G, SFP/SFP+

Device Type Expansion module - 32 ports
Form Factor Plug-in module
Networking
Connectivity Technology Wired
Data Link Protocol GigE, 10 GigE
Performance Forwarding performance: 480 Mpps ¦ Switching capacity: 320 Gbps
Capacity ACL: 32000 ¦ Virtual interfaces (VLANs): 16000
MAC Address Table Size 256K entries
Status Indicators Port status, power, system
Features ASIC VPN, Access Control List (ACL) support, Jumbo Frames support, Deficit Weighted Round Robin (DWRR)
Processor / Memory
RAM 1 GB
Expansion / Connectivity
Interfaces 32 - SFP+
Compatible Slots 1 x expansion slot
Miscellaneous
Compliant Standards CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1
Dimensions & Weight
Width 15.3 in
Depth 22.7 in
Height 1.7 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
