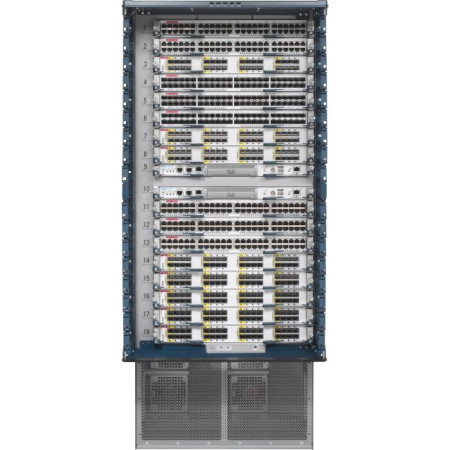

[N7K-C7018] Cisco Nexus 7000 Chassis

Enclosure Type Rack-mountable 25U
Features Modular design
Expansion / Connectivity
Expansion Slots 18 (total) / 18 (free) x expansion slot ¦ 5 (total) / 5 (free) x fabric module slot
Installed Modules Qty (Max) 0 (installed) / 23 (max)
Power
Power Device Internal power supply - hot-plug
Installed Qty 0 (installed) / 4 (max)
Power Redundancy Optional
Miscellaneous
Included Accessories Fan tray
Compliant Standards NEBS level 3, FCC Class A certified, ETSI, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, EN 61000-6-1, EMC, ICES-003 Class A, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CAN/CSA C22.2 No. 60950-1, AS/NZS 60950, GR-1089-CORE, VCCI Class A, KN22, GR-63-CORE
Dimensions & Weight
Width 17.3 in
Depth 33.1 in
Height 43.5 in
Weight 187.39 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
