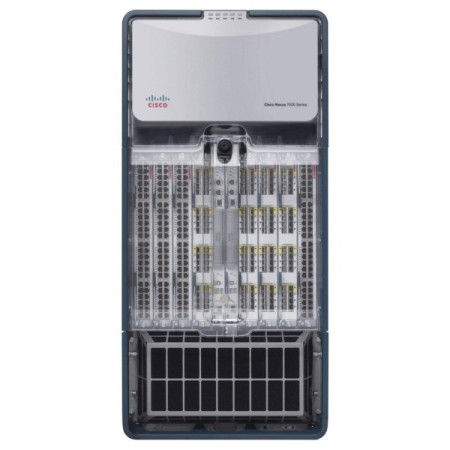

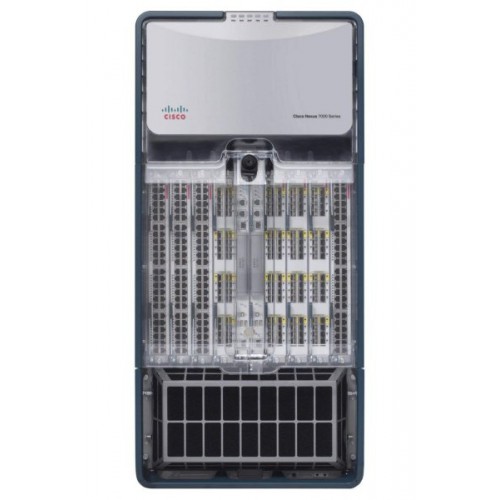

[N7K-C7010-B2S2E] Cisco Nexus 7000 Chassis - 10-Slot Switch - L3 - rack-mountable - with Cisco Nexus 7000 Series Supervisor 2 Enhanced Module, 5x Cisco Nexus 7000 Series Fabric-2 Module

Device Type Switch - L3 - managed - with Cisco Nexus 7000 Series Supervisor 2 Enhanced Module, 5x Cisco Nexus 7000 Series Fabric-2 Module
Enclosure Type Rack-mountable 21U
Performance Per slot per fabric: 110 Gbps
Remote Management Protocol SNMP 1, SNMP, SNMP 3, SNMP 2c, CLI
Features Flow control, modular design, layer 3 switching, layer 2 switching, firmware upgradable, Quality of Service (QoS)
Processor 2 x Intel Xeon: 2.13 GHz
RAM 32 GB DDR3 SDRAM
Flash Memory 8 GB
Expansion / Connectivity
Interfaces 1 x management (Gigabit LAN) console - RJ-45 - RJ-45 ¦ 1 x serial (console) RJ-45 ¦ 3 x USB
Expansion Slots 15 (total) / 9 (free) x expansion slot
Installed Modules Qty (Max) 6 (installed) / 15 (max)
Power
Power Device Internal power supply - hot-plug
Installed Qty 0 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Miscellaneous
MTBF 264,552 hours
Compliant Standards NEBS level 3, FCC Class A certified, ETSI, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, EMC, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS
Dimensions & Weight
Width 17.3 in
Depth 33.1 in
Height 36.5 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
