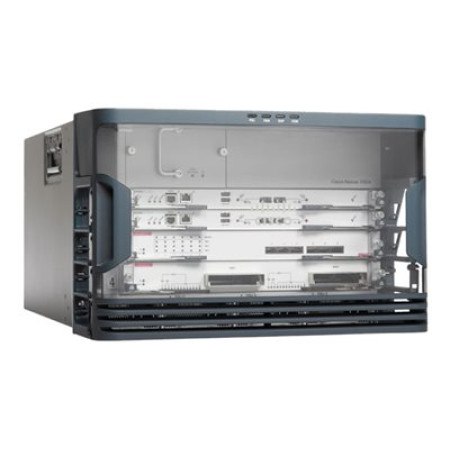

[N7K-C7004-S2] Cisco Nexus 7000 Chassis Bundle - L3, managed - with 2 x Supervisor 2 - No power supply

Enclosure Type Rack-mountable 7U
Remote Management Protocol SNMP 1, SNMP 3, SNMP 2c, CLI
Features Modular design
Compliant Standards IEEE 802.1ae
Processor 1 x Intel Xeon: 2.13 GHz
RAM 8 GB
Flash Memory 8 GB
Expansion / Connectivity
Interfaces 1 x console - RJ-45 management ¦ 1 x console RJ-45 ¦ 1 x USB Type B ¦ 2 x USB Type A ¦ 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 management
Expansion Slots 4 (total) / 1 (free) x expansion slot ¦ 2 (total) / 1 (free) x CompactFlash Card
Installed Modules Qty (Max) 1 (installed) / 4 (max)
Power
Power Device Internal power supply - hot-plug
Installed Qty 2 (installed) / 2 (max)
Power Redundancy Yes
Power Redundancy Scheme 1+1
Voltage Required AC 120/230 V
Miscellaneous
Compliant Standards NEBS level 3, FCC Class A certified, ETSI, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, EMC, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS
Dimensions & Weight
Width 17.4 in
Depth 24.5 in
Height 6.9 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
