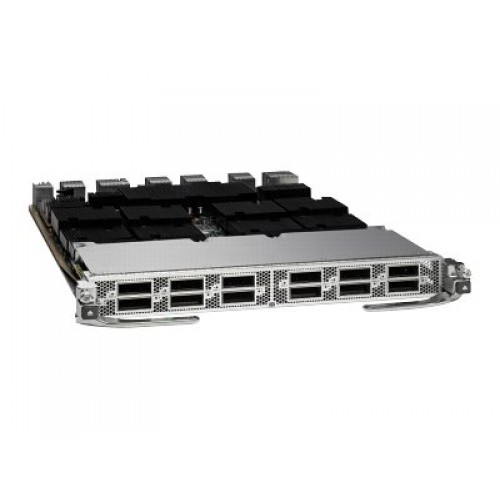

[N77-F312CK-26] Cisco Nexus 7000 Ethernet Module - 12-Port, 100 Gigabit CPAK x 12

Networking
Ports 100 Gigabit CPAK x 12
Connectivity Technology Wired
Data Link Protocol 100 Gigabit Ethernet
Data Transfer Rate 100 Gbps
Capacity IPv4 routes: 64000 ¦ IPv6 routes: 32000 ¦ Virtual interfaces (VLANs): 4096 ¦ Adjacency entries: 64000 ¦ ACL: 16000
MAC Address Table Size 64K entries
Remote Management Protocol CLI
Status Indicators Status, link/activity
Features Access Control List (ACL) support, Jumbo Frames support
Expansion / Connectivity
Interfaces 12 x 100Gb Ethernet - CPAK
Miscellaneous
Compliant Standards NEBS level 3, ETSI, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, EMC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A, CSA C22.2 No. 60950-1, VCCI Class A, KN22 Class A, EN 300386, AS/NZS CISPR 22, CNS 13438
Dimensions & Weight
Width 15.9 in
Depth 21.8 in
Height 1.7 in
Weight 16.98 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
