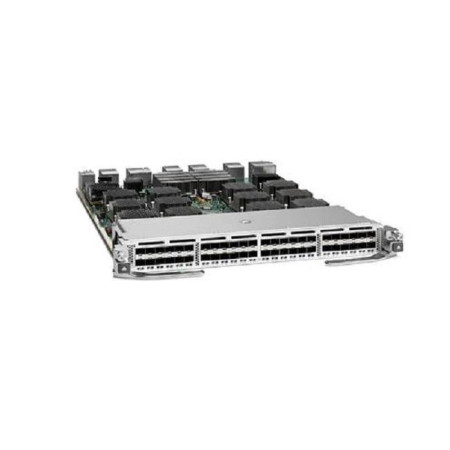

[N77-F248XP-23E] Cisco Nexus 7000 Ethernet Module - Enhanced 48-Port Fiber 1 and 10 Gigabit Ethernet / 10Gb Ethernet / FCoE SFP+ x 48

Ports Gigabit Ethernet / 10Gb Ethernet / FCoE SFP+ x 48
Connectivity Technology Wired
Data Link Protocol GigE, 10 GigE, FCoE
Performance Forwarding performance: 720 Mpps
Capacity IPv4 routes: 32000 ¦ IPv6 routes: 16000 ¦ Virtual interfaces (VLANs): 4096 ¦ Adjacency entries: 16000 ¦ ACL: 16000 ¦ Policies: 1024
MAC Address Table Size 16K entries
Status Indicators Port status, link/activity
Features ASIC VPN, Data Center Bridging Exchange (DCBX) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Deficit Weighted Round Robin (DWRR)
Compliant Standards IEEE 802.1Qbb, IEEE 802.1QazExpansion / Connectivity
Interfaces 48 x 10Gb Ethernet / FCoE - SFP+Miscellaneous
Compliant Standards CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1Power
Power Consumption Operational 400 WattDimensions & Weight
Width 15.9 in
Depth 21.8 in
Height 1.7 in
Weight 16.98 lbsEnvironmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
