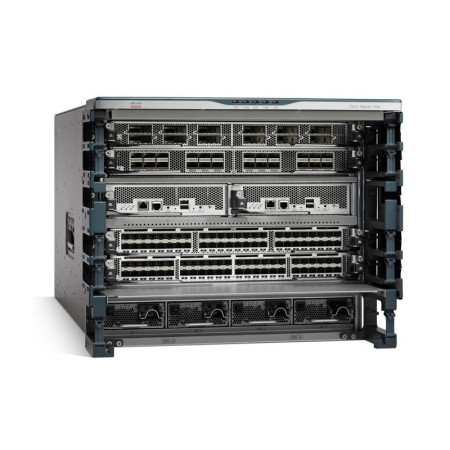

[C1-N7706-B23S2E-R] Cisco ONE Nexus 7706 Switch - L3 - managed - with 2 x Cisco N7K Series Supervisor 2 Enhanced Module, 3 x Cisco N7K Series Fabric-2 Module

Device Type Switch - L3 - managed - with 2 x Cisco Nexus 7000 Series Supervisor 2 Enhanced Module, 3x Cisco Nexus 7000 Series Fabric-2 Module
Enclosure Type Rack-mountable 9U
Routing Protocol IGMP
Remote Management Protocol SNMP 1, SNMP 3, SNMP 2c, CLI
Features Modular design, layer 3 switching, layer 2 switching, Spanning Tree Protocol (STP) support
Processor 4 x Intel Xeon: 2.13 GHz
RAM 64 GB DDR3 SDRAM
Flash Memory 32 GB
Expansion / Connectivity
Interfaces 2 x management (Gigabit LAN) RJ-45 ¦ 2 x serial (console) RJ-45 ¦ 4 x USB
Expansion Slots 6 (total) / 4 (free) x expansion slot ¦ 6 (total) / 3 (free) x fabric module slot
Installed Modules Qty (Max) 5 (installed) / 12 (max)
Power
Power Device Internal power supply - hot-plug
Installed Qty 0 (installed) / 4 (max)
Power Redundancy Optional
Miscellaneous
Compliant Standards NEBS level 3, FCC Class A certified, ETSI, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, EN 61000-6-1, EMC, ICES-003 Class A, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CAN/CSA C22.2 No. 60950-1, AS/NZS 60950, GR-1089-CORE, VCCI Class A, KN22, GR-63-CORE
Dimensions & Weight
Width 17.3 in
Depth 32 in
Height 15.6 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
