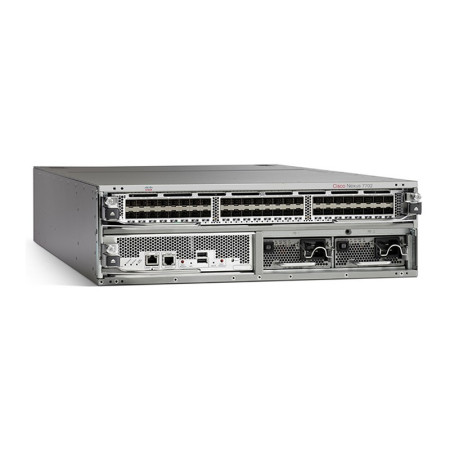

[C1-N7702-S2E-AC] Cisco ONE Nexus 7702 Switch Bundle - with Cisco Nexus 7700 Supervisor 2E Module

Processor 2 x Intel Xeon: 2.13 GHz
RAM 32 GB DDR3 SDRAM
Flash Memory 24 GB
Expansion / Connectivity
Interfaces 1 x 1000Base-T RJ-45 management ¦ 1 x serial RJ-45 ¦ 2 x USB
Expansion Slots 2 (total) / 1 (free) x expansion slot
Installed Modules Qty (Max) 1 (installed) / 2 (max)
Power
Power Device Internal power supply - hot-plug
Installed Qty 2 (installed) / 3 (max)
Power Redundancy Yes
Power Provided 3 kW
Voltage Required AC 120/230 V (50 - 60 Hz)
Miscellaneous
Rack Mounting Kit Included
Compliant Standards NEBS level 3, ETSI, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, EMC, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A, CSA C22.2 No. 60950-1, AS/NZS 60950, AS/NZS, VCCI Class A, KN22
Dimensions & Weight
Width 17.3 in
Depth 29.1 in
Height 5.1 in
Weight 37.48 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
