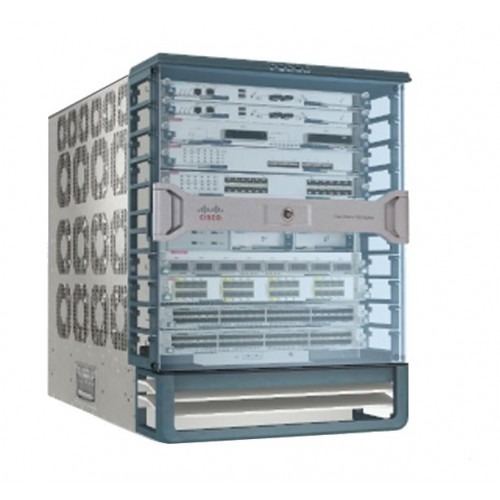

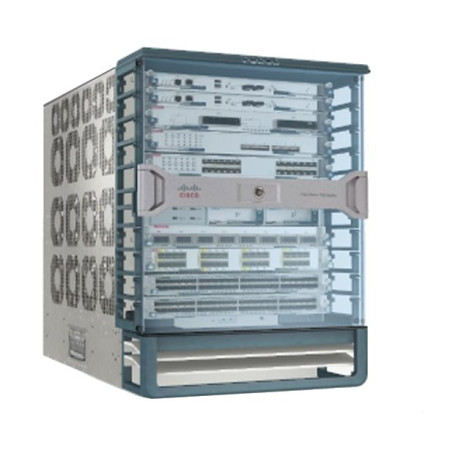

[C1-N7009-B2S2] Cisco ONE Nexus 7009 Switch Bundle - L3 - managed - with Cisco Nexus 7000 Series Supervisor 2 Module, 5 x Cisco N7K Series Fabric-2 Module

Device Type Switch - L3 - managed - with Cisco Nexus 7000 Series Supervisor 2 Module, 5x Cisco Nexus 7000 Series Fabric-2 Module
Enclosure Type Rack-mountable 14U
Performance Per slot per fabric: 110 Gbps
Remote Management Protocol SNMP 1, SNMP 3, SNMP 2c, CLI
Features Modular design
Compliant Standards IEEE 802.1ae
Processor 1 x Intel Xeon: 2.13 GHz
RAM 12 MB
Flash Memory 8 GB
Expansion / Connectivity
Interfaces 1 x 1000Base-T RJ-45 management ¦ 1 x serial (console) RJ-45 ¦ 1 x USB Type B ¦ 1 x serial RJ-45 ¦ 2 x USB Type A
Expansion Slots 14 (total) / 8 (free) x expansion slot ¦ 2 (total) / 1 (free) x CompactFlash Card
Installed Modules Qty (Max) 6 (installed) / 14 (max)
Power
Power Device Internal power supply - hot-plug
Installed Qty 0 (installed) / 2 (max)
Power Redundancy Optional
Miscellaneous
Included Accessories 8 GB USB flash drive
MTBF 318,572 hours
Compliant Standards NEBS level 3, FCC Class A certified, ETSI, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, EMC, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS
Dimensions & Weight
Width 17.3 in
Depth 24 in
Height 24.5 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
