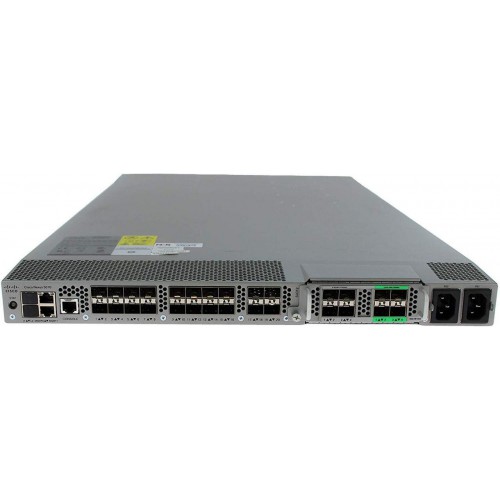

[N5K-C5010P-BF] Cisco Nexus 5000 Switch - 1 x console - RJ-45 - management - 4 x LAN - RJ-45 - management - 20 x SFP+, 1 x Expansion Slot

Ports 20 x SFP+
MAC Address Table Size 16K entries
Fibre Channel FC-DA, FC-FS, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-SW-2, FC-SW-3, FC-SP, FCP, FCP-2, FC-PI-2, FC-BB-5, FC-FS-2, FCP-3, FC-LS, FC-MI-2, FC-PI-4
Remote Management Protocol SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SMI-S, SSH-2
Encryption Algorithm AES
Authentication Method RADIUS, TACACS+, MS-CHAP, Secure Shell v.2 (SSH2)
Features IGMP snooping, Syslog support, Access Control List (ACL) support, Quality of Service (QoS)
Compliant Standards IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP)
Expansion / Connectivity
Interfaces 1 x console RJ-45 management ¦ 4 x LAN RJ-45 management ¦ 20 x SFP+
Expansion Slots 1 (total) / 1 (free) x expansion slot
Power
Power Device Internal power supply - hot-plug
Installed Qty 0 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Power Consumption Operational 450 Watt
Miscellaneous
Cables Included 1 x serial cable
Rack Mounting Kit Included
Compliant Standards FCC Class A certified, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS
Dimensions & Weight
Width 17.3 in
Depth 30 in
Height 1.7 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
