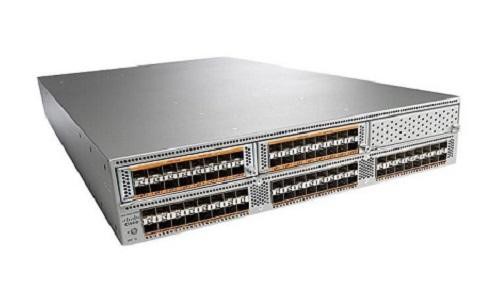

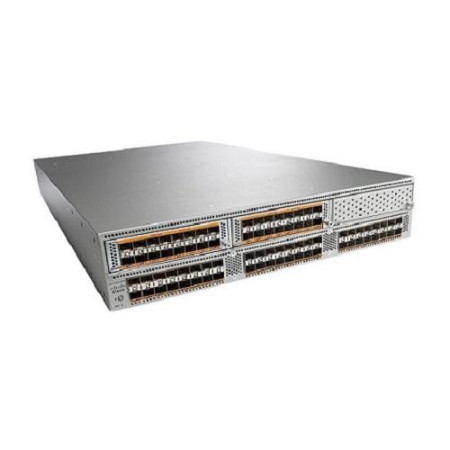

[C1-N5596UP6N2248TP] Cisco ONE Nexus 5596UP Switch - managed - 48 x 1 Gigabit / 10 Gigabit / FCoE SFP+ - with 6 x Cisco Nexus 2248TP GE Fabric Extender

Ports 48 x 1 Gigabit / 10 Gigabit / FCoE SFP+
Performance Forwarding performance: 1920 Gbps
MAC Address Table Size 32K entries
Jumbo Frame Support 9216 bytes
Remote Management Protocol SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI
Encryption Algorithm AES
Authentication Method RADIUS, TACACS+, MS-CHAP, Secure Shell v.2 (SSH2)
Features Layer 2 switching, VLAN support, Syslog support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), Jumbo Frames support, Dynamic ARP Inspection (DAI), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Link Aggregation Control Protocol (LACP)
Compliant Standards IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 801.1p
Expansion / Connectivity
Interfaces 48 x SFP+ ¦ 1 x 1000Base-T RJ-45 management ¦ 1 x console management ¦ 1 x USB
Expansion Slots 3 (total) / 3 (free) x expansion slot
Power
Power Device Internal power supply - hot-plug
Installed Qty 2 (max)
Power Redundancy Yes
Power Redundancy Scheme 1+1
Miscellaneous
Compliant Standards CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, EN300-386, UL 60950-1 Second Edition, GB 4943, FIPS 140-2 Level 1, CAN/CSA C22.2 No. 60950-1, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A
Dimensions & Weight
Width 17.3 in
Depth 29.5 in
Height 3.5 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
