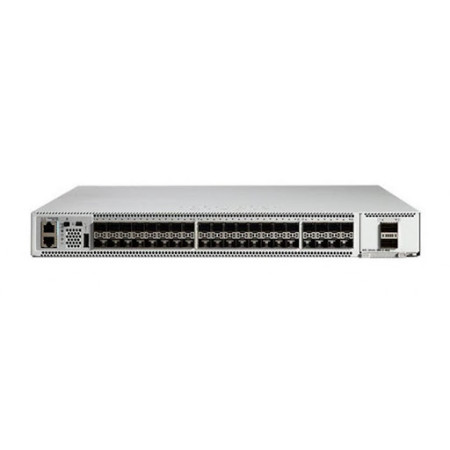

[C9500-40X-2Q-E] Cisco Catalyst 9500 40 x 10G, 2 x 40G Bundle, Network Essentials

Capacity Indirect IPv4 routes: 64000 ¦ Host IPv4 routes: 32000 ¦ Indirect IPv6 routes: 32000 ¦ Host IPv6 routes: 16000 ¦ Multicast scale: 48000 ¦ QoS ACL scale: 18000 ¦ Security ACL scale: 18000 ¦ FNF entries: 512000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 4000
Compliant Standards IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3ba
Device Type Switch - 40 ports - L3 - managed - stackable - with Cisco 40GE Network Module (C9500-NM-2Q)
Enclosure Type Rack-mountable 1U
Encryption Algorithm 256-bit AES
Features NAT support, IPv6 support, Stateful switchover (SSO), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, MLD snooping, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Flexible NetFlow (FNF), 802.1x authentication, MACsec support, Control plane protection (CoPP), VLAN Double Tagging (Q-in-Q), Private VLAN, Zero-touch provisioning (ZTP), CoAP support, secure boot, Switched Port Analyzer (SPAN), First Hop Security (FHS)
Flash Memory 16 GB
Jumbo Frame Support 9198 bytes
MAC Address Table Size 64K entries
Performance Switching capacity (full duplex): 480 Gbps ¦ Forwarding rate: 720 Mpps
Ports 40 x 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+
Processor 1: 2.4 GHz
RAM 16 GB
Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, NETCONF, RESTCONF
Routing Protocol OSPF, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, PIM-SSM, policy-based routing (PBR), RIPng
Status Indicators Status
Subtype 10 Gigabit Ethernet
Dimensions & Weight
Depth 21.5 in
Height 1.7 in
Weight 25.75 lbs
Width 17.5 in
