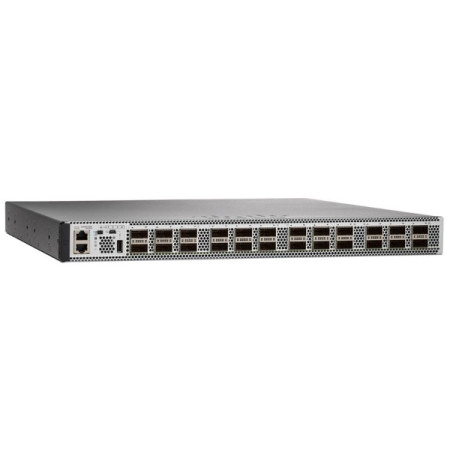

[C9500-24Q-E] Cisco Catalyst 9500 24-port 40G switch, Network Essentials

Capacity Routing table entries: 64000 ¦ Indirect IPv4 routes: 64000 ¦ Host IPv4 routes: 32000 ¦ Indirect IPv6 routes: 32000 ¦ Host IPv6 routes: 16000 ¦ Multicast scale: 48000 ¦ QoS ACL scale: 18000 ¦ Security ACL scale: 18000 ¦ FNF entries: 512000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 4000
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae
Device Type Switch - 24 ports - L3 - managed
Enclosure Type Rack-mountable 1U
Encryption Algorithm 256-bit AES
Features IGMP snooping, Syslog support, IPv6 support, Non-Stop Forwarding (NSF), Stateful switchover (SSO), Weighted Random Early Detection (WRED), Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, LLDP support, Remote Switch Port Analyzer (RSPAN), NetFlow, Flexible NetFlow (FNF), MACsec support, built-in ASIC, Location ID Separation Protocol (LISP), Open Shortest Path First (OSPF), VLAN Double Tagging (Q-in-Q), Zero-touch provisioning (ZTP), Switched Port Analyzer (SPAN), Cisco StackWise Virtual
Flash Memory 16 GB
Jumbo Frame Support 9198 bytes
MAC Address Table Size 64K entries
Performance Switching capacity (full duplex): 960 Gbps ¦ Forwarding rate: 1440 Mpps
Ports 24 x 40 Gigabit QSFP
Power Over Ethernet (PoE) UPOE
Processor 1: 2.4 GHz
RAM 16 GB - DIMM 288-pin - DDR4 SDRAM
Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, TFTP, NETCONF, RESTCONF
Routing Protocol OSPF, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, PIM-SSM, RIPng, MPLS
Subtype 40 Gigabit Ethernet
Dimensions & Weight
Depth 21.5 in
Height 1.7 in
Width 17.5 in
Environmental Parameters
Humidity Range Operating 5 - 90% (non-condensing)
Humidity Range Storage 5 - 95% (non-condensing)
Max Operating Temperature 104 °F
Max Storage Temperature 149 °F
Min Operating Temperature 32 °F
Min Storage Temperature -4 °F
Expansion / Connectivity
Interfaces 24 x 40Gbit LAN QSFP ¦ 2 x USB 3.0
