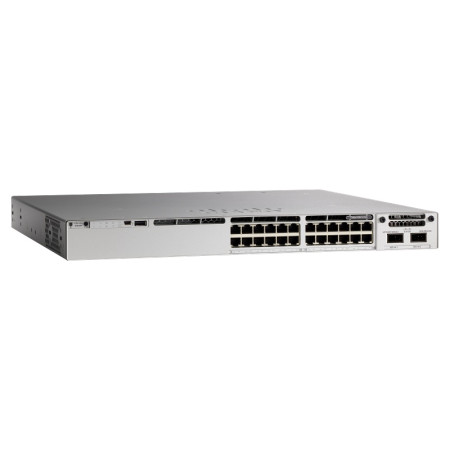

[C9300-24U-E] Cisco Catalyst 9300 24-port UPOE, Network Essentials

Device Type Switch - 24 ports - L3 - Managed - stackable
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 (UPOE)
Power Over Ethernet (PoE) UPOE
PoE Budget 830 W
Performance Switching capacity: 128 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 154.76 Mpps
Capacity IPv4 routing table entries: 32000 ¦ IPv6 routing table entries: 16000 ¦ Flexible NetFlow entries: 64000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 2000
MAC Address Table Size 32000 entries
Jumbo Frame Support 9198 bytes
Routing Protocol OSPF, IS-IS, RIP-1, RIP-2, EIGRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng
Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Features Trunking, full duplex mode, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, FTP client, 3 fans, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Encapsulated Remote SPAN (ERSPAN), Security Group Access Control List (SGACL), IT Service Management (ITSM) integration
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
Power AC 120/230 V (50 - 60 Hz)
Power Redundancy Optional
Dimensions (WxDxH) 44.5 cm x 44.5 cm x 4.4 cm
Weight 7.54 kg
System Requirements Cisco IOS Universal
