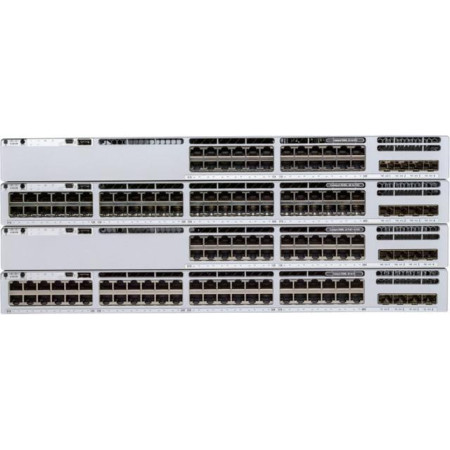

[C9300L-24T-4G-A] Cisco Catalyst 9300L 24p data, Network Advantage ,4x1G Uplink

Device Type Switch - 24 ports - L3 - Managed - stackable
Enclosure Type Rack-mountable
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 + 4 x Gigabit SFP (uplink)
Performance Switching capacity: 56 Gbps ¦ Stacking bandwidth: 320 Gbps ¦ Switching capacity with stacking: 376 Gbps ¦ Forwarding rate: 41.66 Mpps ¦ Forwarding rate with stacking: 279.76 Mpps
Capacity IPv4 routes: 32000 ¦ IPv6 routes: 16000 ¦ Multicast scale: 8000 ¦ QoS scale entries: 5120 ¦ ACL scale entries: 5120 ¦ VLANs supported: 4094 ¦ FNF entries: 64000 ¦ Switched virtual interfaces (SVIs): 1000 ¦ Packet buffer size: 16 MB ¦ Virtual networks: 64
MAC Address Table Size 32000 entries
Jumbo Frame Support 9198 bytes
Routing Protocol OSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MPLS, MSTP
Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, gRPC, IPv4, IPv6, YANG
Features Non-Stop Forwarding (NSF), Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Virtual Routing and Forwarding (VRF), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, Precision Time Protocol (PTP), DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Location ID Separation Protocol (LISP), Blue Beacon LED, Zero-touch provisioning (ZTP), CoAP support, secure boot, Switched Port Analyzer (SPAN), Security Group Tag (SGT) caching, Protocol Independent Multicast (PIM), First Hop Security (FHS), Audio Video Bridging (AVB), PVLAN support, Graceful Insertion and Removal (GIR) mode, Committed Information Rate (CIR), Cisco Trust Anchor module, Cisco Unified Access Data Plane (UADP) 2.0, Cisco StackWise-320 technology
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 1588v2, IEEE 802.1BA, Wi-Fi CERTIFIED 6
Power AC 120/230 V (50 - 60 Hz)
Power Redundancy Optional
Dimensions (WxDxH) 44.5 cm x 4.4 cm x 40.9 cm
Weight 6.78 kg
