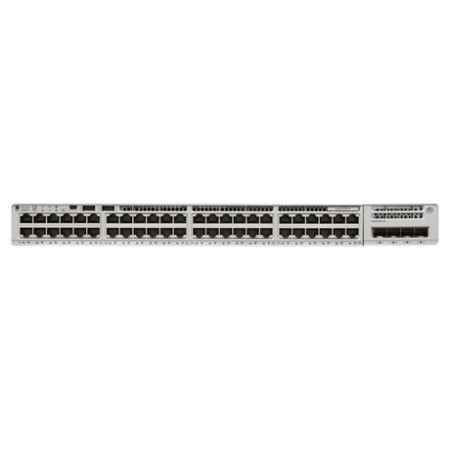

[C9200L-48PXG-4X-A] Cisco Catalyst C9200L 48-port 12xmGig, 36x1G, 4x10G PoE+, Network Advantage

Device Type Switch - 48 ports - L3 - managed - stackable
Enclosure Type Rack-mountable
Subtype Gigabit Ethernet
Ports 12 x 100/1000/2.5G/5G/10GBase-T + 36 x 10/100/1000 (PoE+) + 4 x 10 Gigabit Ethernet
Power Over Ethernet (PoE) PoE+
PoE Budget 740 W
Performance Stacking bandwidth: 80 Gbps Switching capacity: 392 Gbps Switching capacity with stacking: 472 Gbps Forwarding rate: 291.66 Mpps
Capacity Virtual networks: 1 IPv4 routes: 11000 IPv4 routing table entries: 3000 IPv6 routing table entries: 1500 Multicast scale: 1000 ACL scale entries: 1500 FNF entries: 16000 VLANs supported: 1024 Switched virtual interfaces (SVIs): 512 QoS hardware queues per port: 8 Packet buffer size: 6 MB
MAC Address Table Size 16000 entries
Jumbo Frame Support 9198 bytes
Routing Protocol OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Encryption Algorithm 128-bit AES
Features ARP support, Spanning Tree Protocol (STP) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Management Information Base (MIB), Virtual Routing and Forwarding (VRF), Class of Service (CoS), Flexible NetFlow (FNF), DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Location ID Separation Protocol (LISP), Switched Port Analyzer (SPAN), Security Group Tag (SGT) caching, Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR), Cisco StackWise-80 technology
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3bz
RAM 2 GB
Flash Memory 4 GB
Expansion / Connectivity
Interfaces 12 x 100/1000/2.5G/5G/10GBase-T RJ-45 36 x 1000Base-T RJ-45 PoE+ 4 x 10GBase-X uplink 1 x network stack device 1 x management (LAN) RJ-45 1 x console RJ-45
Power
Power Device Internal power supply - hot-plug
Installed Qty 2 (max)
Power Redundancy Optional
Power Provided 1000 Watt
Voltage Required AC 120/230 V (50 - 60 Hz)
