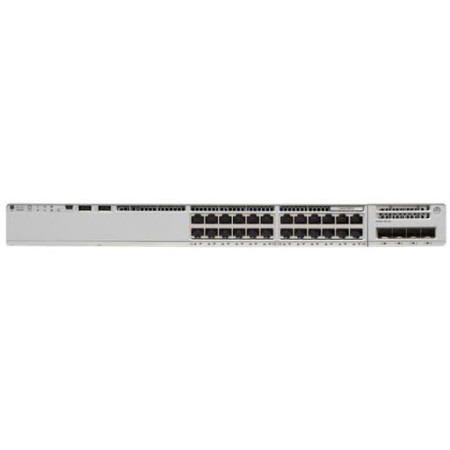

[C9200L-24PXG-2Y-E] Cisco Catalyst C9200L 24-p 8xmGig, 16x1G, 2x25G, PoE+, Network Essentials

Device Type Switch - 24 ports - L3 - managed - stackable
Enclosure Type Rack-mountable
Subtype Gigabit Ethernet
Ports 8 x 100/1000/2.5G/5G/10GBase-T + 16 x 10/100/1000 (PoE+) + 2 x 25 Gigabit Ethernet
Power Over Ethernet (PoE) PoE+
PoE Budget 370 W
Performance Stacking bandwidth: 80 Gbps Switching capacity: 292 Gbps Switching capacity with stacking: 327 Gbps Forwarding rate: 229.16 Mpps
Capacity Virtual networks: 1 IPv4 routes: 11000 IPv4 routing table entries: 3000 IPv6 routing table entries: 1500 Multicast scale: 1000 ACL scale entries: 1500 FNF entries: 16000 VLANs supported: 1024 Switched virtual interfaces (SVIs): 512 QoS hardware queues per port: 8 Packet buffer size: 6 MB
MAC Address Table Size 16000 entries
Jumbo Frame Support 9198 bytes
Routing Protocol OSPF, RIP, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, IPv4, IPv6, YANG
Encryption Algorithm 128-bit AES
Features Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Energy Efficient Ethernet, Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Blue Beacon LED, Zero-touch provisioning (ZTP), secure boot, Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR), Cisco StackWise-80 technology, Cisco Trust Anchor module, Cisco Unified Access Data Plane (UADP) 2.0
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3bz
RAM 2 GB
Flash Memory 4 GB
Expansion / Connectivity
Interfaces 8 x 100/1000/2.5G/5G/10GBase-T RJ-45 16 x 1000Base-T RJ-45 PoE+ 2 x 25GBase-X uplink 1 x network stack device 1 x management (LAN) RJ-45 1 x console RJ-45
Power
Power Device Internal power supply - hot-plug
Installed Qty 2 (max)
Power Redundancy Optional
Power Provided 600 Watt
Voltage Required AC 120/230 V (50 - 60 Hz)
