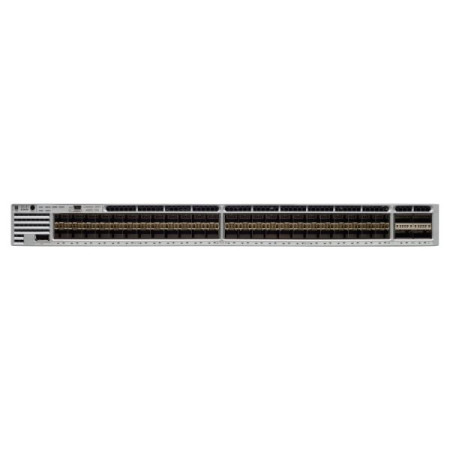

[WS-C3850-48XS-S] Cisco Catalyst 3850 48 Port 10G Fiber Switch IP Base

Specification DHCP-enabled, ARP support, syslog support, PIM snooping, multiple spanning tree Protocol (MSTP) support, DHCP snooping, dynamic trunking protocol support (DTP), Port Aggregation Protocol (PAgP) support, Trivial file transfer protocol (TFTP) support, access control list (ACL) support, quality of service (QDS), SSH support, virtual route forwarding-Lite (VRF-Lite), front-to-back airflow, uni-directional link detection (UDLD), rapid per-VLAN Spanning tree Plus (PVRST +), shaped round robin (SRR), link aggregation Control Protocol (LACP), remote switch port Analyzer (RSPAN), energy efficient Ethernet, virtual routing and forwarding (VRF), Cisco StackWise technology-480, Cisco technology StackPower, flexible NetFlow (FNF), 802.1 x authentication, radio resource management (RRM or radio resource management), ARP inspection, weighted tail drop (WTD), VLAN Trunking Protocol (VTP), bridge protocol data unit (BPDU), control plane protection ( CoPP
Performance -Switching capacity: 1 280 Gbps
-Stacking bandwidth: 480 Gbps
Ability -IPv4 routes: 24000
-NetFlow inputs: 96000
-Virtual interfaces (VLANS): 4000
-Virtual switched interfaces (SVI): 1000
Routing protocol OSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, EIGRP for IPv6, OSPFv3, PIM-SSM, rule-based routing (PBR), RIPng, MLDv2, MLD
MAC Address Table size 32 000 entries
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP
Ports -4 x 40Gbit LAN QSFP + uplink
-48 x 10GBase-X SFP +
-1 x USB type A
-1 x management (mini-USB) type B
-1 x RJ-45 management console
-1 x management (Gigabit LAN) RJ-45
IEEE compliance standards IEEE 802.3, IEEE 802.3 u, IEEE 802.3 z, IEEE 802.1 D, IEEE 802.1 Q, IEEE 802.3 AB, IEEE 802.1 p, IEEE 802.3 AF, IEEE 802.3 x, IEEE 802.3 ad (LACP), IEEE 802.1 w, IEEE 802.1 x, IEEE 802.1 s, IEEE 802.3 Ah, IEEE 802.1 AB (LLDP), IEEE 802.3 at
RAM 8gb
Flash memory 8gb
Software provided Cisco IOS
Power CA 120/230 V (50/60 Hz)
Expansion slots 2 (total)/2 (free) x stacking module
Type of Chassis 1u Rack mountable
