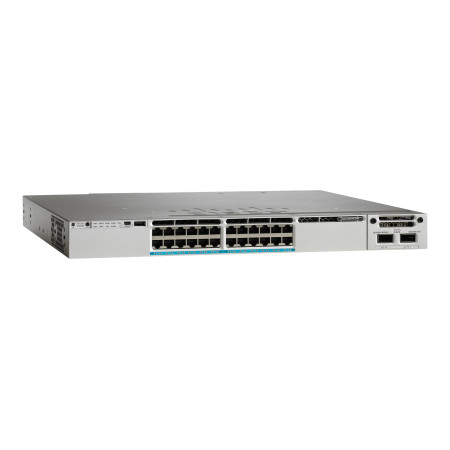

[WS-C3850-24XU-S] Cisco Catalyst 3850 24 mGig Port UPoE IP Base

Device Type Switch - 24 ports - L3 - managed - stackable
Enclosure Type Desktop, rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 (UPOE)
Power Over Ethernet (PoE) UPOE
PoE Budget 580 W
Performance Switching capacity: 92 Gbps Stacking bandwidth: 480 Gbps Forwarding performance (64-byte packet size): 460 Mpps
Capacity IPv4 routes: 24000 NetFlow entries: 24000 Switched virtual interfaces (SVIs): 1000 Virtual interfaces (VLANs): 4000
MAC Address Table Size 32000 entries
Jumbo Frame Support 9198 bytes
Routing Protocol RIP-1, RIP-2, EIGRP, RIPng
Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features DHCP support, ARP support, Syslog support, PIM snooping, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), SSH support, Virtual Route Forwarding-Lite (VRF-Lite), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Virtual Routing and Forwarding (VRF), Cisco StackWise-480 technology, Cisco StackPower technology, 802.1x authentication, radio resource management (RRM), ARP inspection, Weighted Tail Drop (WTD), VLAN Trunking Protocol (VTP), Bridge protocol data unit (BPDU), Control plane protection (CoPP)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
RAM 4 GB
Flash Memory 2 GB
Status Indicators Port transmission speed, port duplex mode, power, system, active, status, PoE
Expansion / Connectivity
Interfaces 12 x 1000Base-T RJ-45 UPOE - 60 W 12 x 1/2.5/5/10GBase-T RJ-45 UPOE - 60 W 1 x USB Type A 1 x management (mini-USB) Type B 1 x console RJ-45 management 1 x management (Gigabit LAN) RJ-45 2 x network stack device
Expansion Slots 1 (total) / 1 (free) x expansion slot
Power
Power Device Internal power supply
Installed Qty 1 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Power Provided 1100 Watt
Voltage Required AC 120/230 V (50 - 60 Hz)
