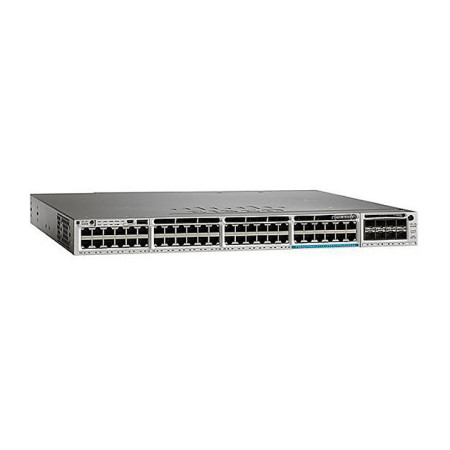

[WS-C3850-12X48U-L] Cisco Catalyst 3850 48 Port (12 mGig+36 Gig) UPoE LAN Base

Device Type Switch - 48 ports - L3 - managed - stackable
Enclosure Type Desktop, rack-mountable 1U
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 (UPOE)
Power Over Ethernet (PoE) UPOE
PoE Budget 630 W
Performance Switching capacity: 176 Gbps Stacking bandwidth: 480 Gbps Forwarding performance (64-byte packet size): 460 Mpps
Capacity IPv4 routes: 24000 NetFlow entries: 48000 Switched virtual interfaces (SVIs): 1000
MAC Address Table Size 32000 entries
Jumbo Frame Support 9198 bytes
Routing Protocol RIP-1, RIP-2, EIGRP, RIPng
Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features Auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Energy Efficient Ethernet, Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
RAM 4 GB
Flash Memory 2 GB
Status Indicators Port transmission speed, port duplex mode, system, status, PoE
Expansion / Connectivity
Interfaces 36 x 1000Base-T RJ-45 UPOE - 60 W 1 x USB Type A 1 x management (mini-USB) Type B 1 x serial (RS-232) RJ-45 management 1 x management (Gigabit LAN) RJ-45 2 x network stack device 12 x 1/2.5/5/10GBase-T RJ-45 UPOE - 60 W
Expansion Slots 1 (total) / 1 (free) x expansion slot
Power
Power Device Internal power supply
Installed Qty 1 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Power Provided 1100 Watt
Voltage Required AC 120/230 V (50/60 Hz)
