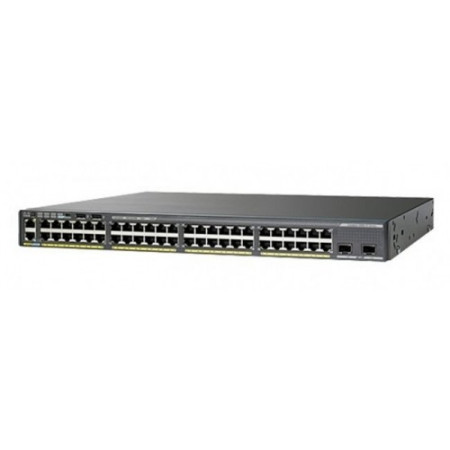

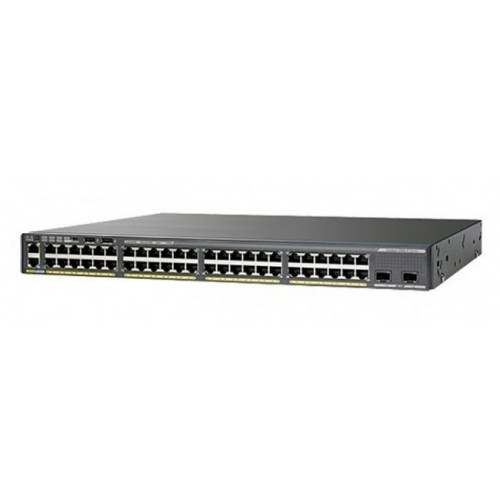

[WS-C2960XR-48TS-I] Cisco Catalyst 2960-XR 48 GigE, 4 x 1G SFP, IP Lite

Manufacturer Cisco
Manufacturer Part # WS-C2960XR-48TS-I
Product Description Cisco Catalyst 2960XR-48TS-I - switch - 48 ports - Managed - desktop, rack-mountable
Device Type Switch - 48 ports - L3 - Managed - stackable
Enclosure Type Desktop, rack-mountable 1U
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 + 4 x SFP
Performance Switching capacity : 216 Gbps ¦ Forwarding performance (64-byte packet size) : 107.1 Mpps
Capacity Active VLANs : 1023
Jumbo Frame Support 9216 bytes
Routing Protocol OSPF, RIP-1, RIP-2, HSRP, VRRP, PIM-SM, PIM-DM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI
Features Full duplex capability, Layer 2 switching, auto-negotiation, BOOTP support, ARP support, Cisco Fast EtherChannel, VLAN support, auto-uplink (auto MDI/MDI-X), Cisco Gigabit EtherChannel , IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), DHCP relay, Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Per-VLAN Rapid Spanning Tree (PVRST), NetFlow, Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Multicast VLAN Registration (MVR), Strict Priority Queuing (SPQ), Class of Service (CoS), Cisco FlexStack Plus, DiffServ Code Point (DSCP) support, IGMP filtering
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1AX
Power AC 120/230 V ( 50/60 Hz )
Power Redundancy Optional
Dimensions (WxDxH) 44.5 cm x 40.8 cm x 4.45 cm
Weight 6 kg
