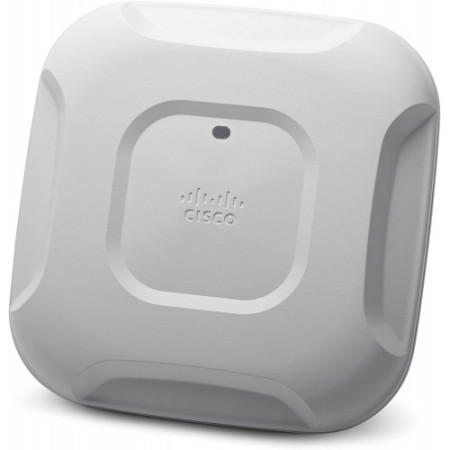

[AIR-CAP3702I-S-K9] Cisco 802.11ac Ctrlr AP 4x4:3SS w/CleanAir; Int Ant; S Reg Domain
Processor / Memory / Storage
RAM 512 MB
Flash Memory 64 MB
Networking
Form Factor External
Connectivity Technology Wireless
Data Transfer Rate 1.3 Gbps
Line Coding Format CCK
Data Link Protocol IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Frequency Band 2.4 GHz, 5 GHz
Status Indicators Status
Features Auto-sensing per device, Wi-Fi Multimedia (WMM) support, CleanAir technology, Maximum Ratio Combining (MRC), 4T4R MIMO technology, ClientLink 3.0 technology
Encryption Algorithm AES, TLS, PEAP, TTLS, TKIP, WPA, WPA2
Authentication Method MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST
Compliant Standards IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac
Aerial
Antenna Internal
Directivity Omni-directional
Expansion / Connectivity
Interfaces 1 x 1000Base-T - RJ-45
1 x management - RJ-45
Miscellaneous
Compliant Standards VCCI, ICES-003, FCC Part 15.247, OET 65 C, RSS-210, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15.107, FCC Part 15.109, FCC Part 15.407, EN 60601-1-2, ARIB STD-T66, ARIB STD-T71, EN50155, EMI, EN 300 328, EN 301 489-1, EN 301 893, CAN/CSA-C22.2 No. 60950-1, EN 301 489-17
Power
Power Over Ethernet (PoE) Supported PoE+
Power Consumption Operational 15 Watt
