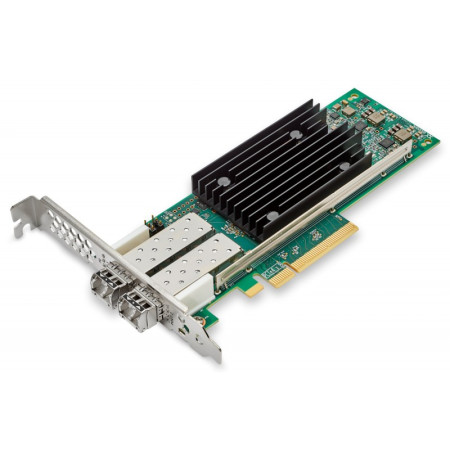

[QLE2772] Qlogic QLE2772-SR-SP PCIe 4.0 x8 Dual-port 32GFC SR-Optic SFP+ Enhanced 32Gb Fibre Channel Adapter

Features

Improve scale out NVMe efficiencies by delivering concurrent support for FCP and FC-NVMe™
Industry leading performance of up to 4 million IOPS and 25,600MBps of aggregate throughput
Port isolation design delivers deterministic and scalable performance on each port
Marvell StorFusion™ technology accelerates deployment, simplifies diagnostics, enhances reliability, and optimizes performance
Improve database transactional performance, enable faster business decisions with up to 2x faster data mining, and host more VMs
Supports PCIe 4.0 systems
Available in single, dual, and quad-port versions
Host Bus Interface Specifications

Bus Interface
QLE2770: PCIe 4.0 ×8 (single-port)
QLE2772: PCIe 4.0 ×8 (dual-port)
QLE2774: PCIe 4.0 ×16 (quad-port)
Host Interrupts
INTx and MSI-X
Compliance
PCIe Base Specification, rev. 4.0
PCIe Card Electromechanical Specification, rev. 3.0
PCIe Card Electromechanical Specification, rev. 4.0 draft 0.9
PCI Bus Power Management Interface Specification, rev. 1.2
PCI Hot Plug Specification, rev. 1.1
Fibre Channel Specifications

Throughput
6,400MBps full duplex line rate per port
Logins
Support for 2,048 concurrent logins and 2,048 active exchanges per port
Port Virtualization
NPIV
Compliance
SCSI Fibre Channel Protocol-4 (FCP-4)
Fibre Channel Tape (FC-TAPE) Profile
Fibre Channel Generation Services-8 (FC-GS-8)
Fibre Channel-Physical Interface-5 (FC-PI5)
Fibre Channel-Physical Interface-6 (FC-PI6)
Fibre Channel Link Services 4 (FC-LS-4)
Fibre Channel Framing and Signalling-4 (FC-FS-4)
Fibre Channel-NVMe-2 (FC-NVMe-2)
Physical Specifications

Ports
QLE2770: single-port FC
QLE2772: dual-port FC
QLE2774: quad-port FC
Form Factor
Single port: low profile PCIe card (6.6 inches × 2.731 inches)
Dual port: low profile PCIe card (6.6 inches × 2.731 inches)
Quad port: standard height PCIe card (6.6 inches × 4.38 inches)
Ordering Information

QLE2770-SR-SP (Single Port)
Ships in an individually packed box with a standard-height bracket installed
Ships with 32GFC SR optical transceiver installed
QLE2772-SR-SP (Dual Port)
Ships in an individually packed box with a standard-height bracket installed
Ships with 32GFC SR optical transceivers installed
QLE2774-SR-SP (Quad Port)
Ships in an individually packed box with a standard-height bracket installed
Ships with 32GFC SR optical transceivers installed
